Spray Rating Tester is used to determine the water resistance of any fabrics, which may or may not have been given a water-repellent finish, to surface wetting by water.
model :
AG20Brand:
AVENOorigin:
ChinaLead Time：
3days, in stockport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

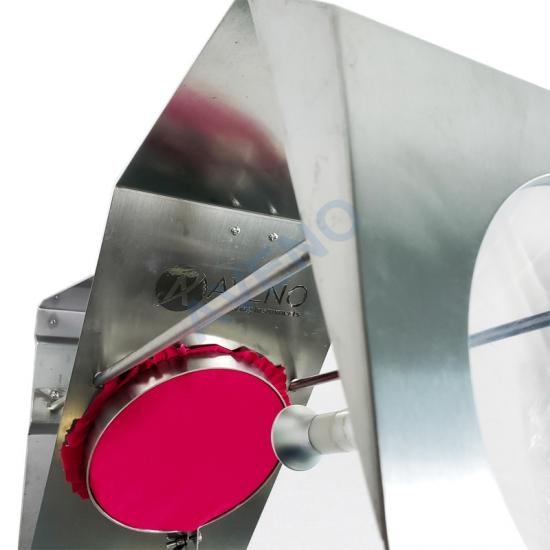

AATCC 22, ISO 4920, JIS L1092, GB/T 4745.AG20-Spray Rating Tester
Application Of Spray
Rating Tester
Spray Rating Tester is used to determine the water resistance of any fabrics, which may or may not have been given a water-repellent finish, to surface wetting by water. It is not intended to predict waterproofness, since it does not measure the penetration of water through fabric.
Standards Of Spray Rating Tester
AATCC 22, ISO 4920, JIS L1092, GB/T 4745.
Product Details
Key Specification Of Spray Rating Tester
|
Model |
AG20 Spray Rating Tester |
|
Glass funnel |
150×150 (V=500mL) |
|
Laying angle of specimen |
45degree |
|
The distance between nozzle and center of specimen |
150mm |
|
Sample rack diameter |
150mm |
|
Matching measuring cup |
250ml |
|
Dimensions |
50×40×50cm |
|
Weight |
5kg |
Accessories Of Spray Rating Tester
|
Standard Accessories |
Drip tray |
1pc |
|
Measuring glass |
1pc |
|
|
Nozzle |
1pc |
|
|
Sample fixture |
1pc |
