Notice! There are new changes in the fuzzing and pilling rating regulations! Come see your fabric felt?
With GB / T 4802.4-2020, ISO 12945-1: 2020, ISO 12945-2: 2020, ISO 12945-3: 2020, ISO 12945-3: 2020, ISO 12945-4: 2020, etc., the results of the above standard gaze rating also have Change.
1. The old standard requires the issuance of pilling levels, such as pilling Level 3;
2. The new version of the standard increases the rating of felting phenomenon, and requires the issuance of pilling level and felting level, such as pilling level 3-4 and felting Level 3.
This session focuses on felting
How to rate
01 What is felting?
GB / T 4802.4-2020 gives the definition of felting: the entanglement of fibers protruding from the surface of pile fabric forms a disorderly arrangement, resulting in visible surface changes. It can be seen from the definition that felting is generally aimed at pile fabrics.
02 Which fabrics need felting rating

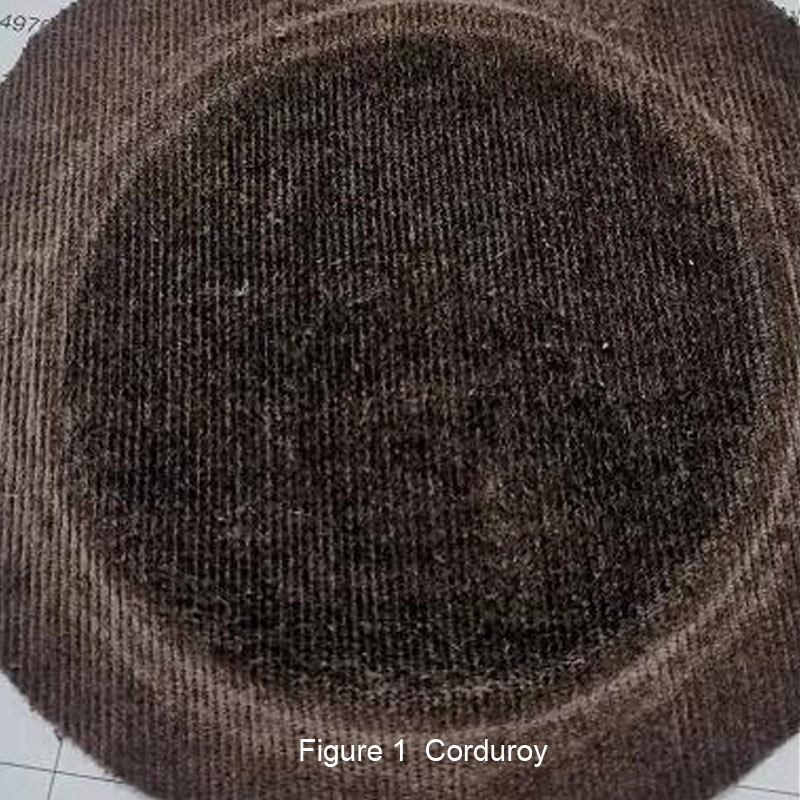

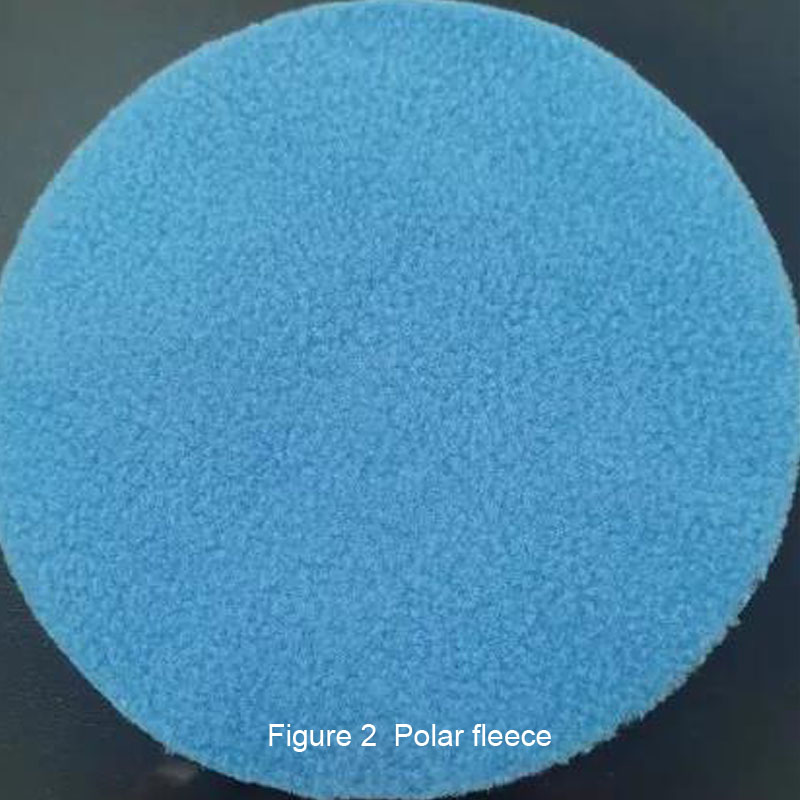

1. The most direct, grab the keywords in the sample description, such as there are words such as corduroy and fleece in the sample description. These fabrics are clearly pointed out as pile fabrics and need felting rating, as shown in Figure 1 and Figure 2.

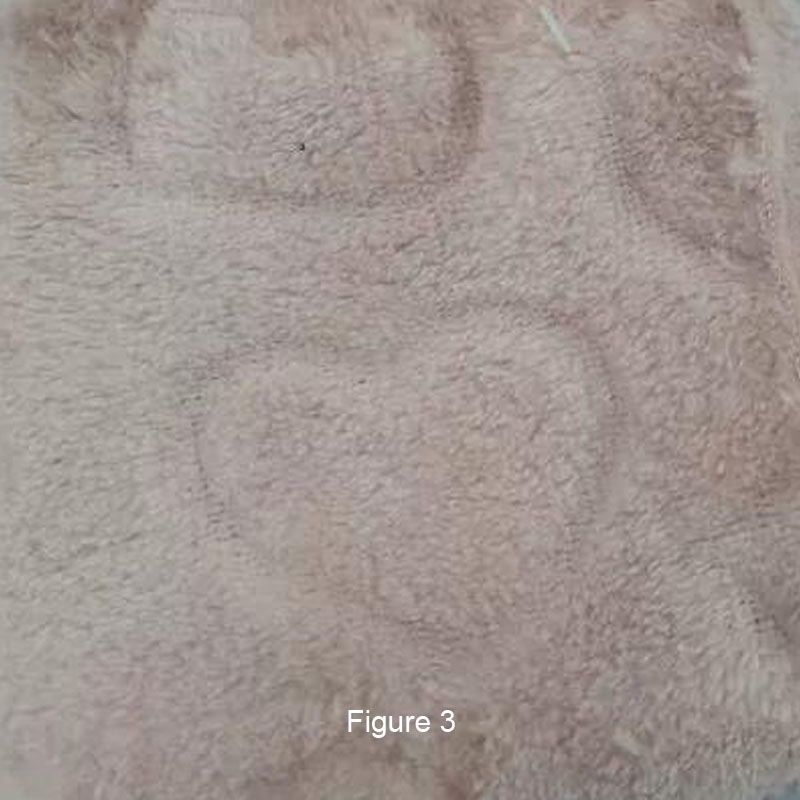

2. The surface of the fabric is obviously a decancing fabric, etc., as shown in Figure 3.

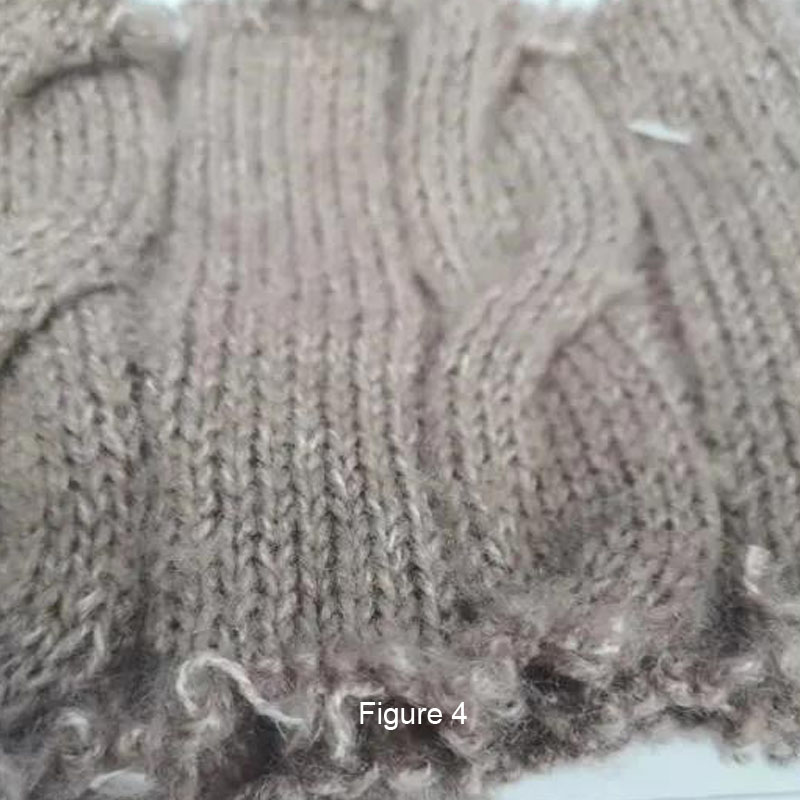

3. General, coarse comb woven fabric, etc., as shown in Figure 4.
03 Level description of felt rating
GB / T 4802.4-2020 standard gives a grade description of a felt rating, as Table 1.
Series |
State description |
5 |
Unchanged |
4 |
The surface is slightly felted |
3 |
Moderate felting on the surface |
2 |
The surface is obviously felted |
1 |
The surface is severely felted |
The standard states: due to the subjectivity of the rating, at least two people should rate the sample, but the rating is mainly carried out by the eyes of the personnel. It is highly subjective and has different understanding of the degree of slight, moderate, obvious and serious. Sometimes different personnel are rated with a grade difference of 1 or more.
04 State description of different changes in felt rating
Slight felting

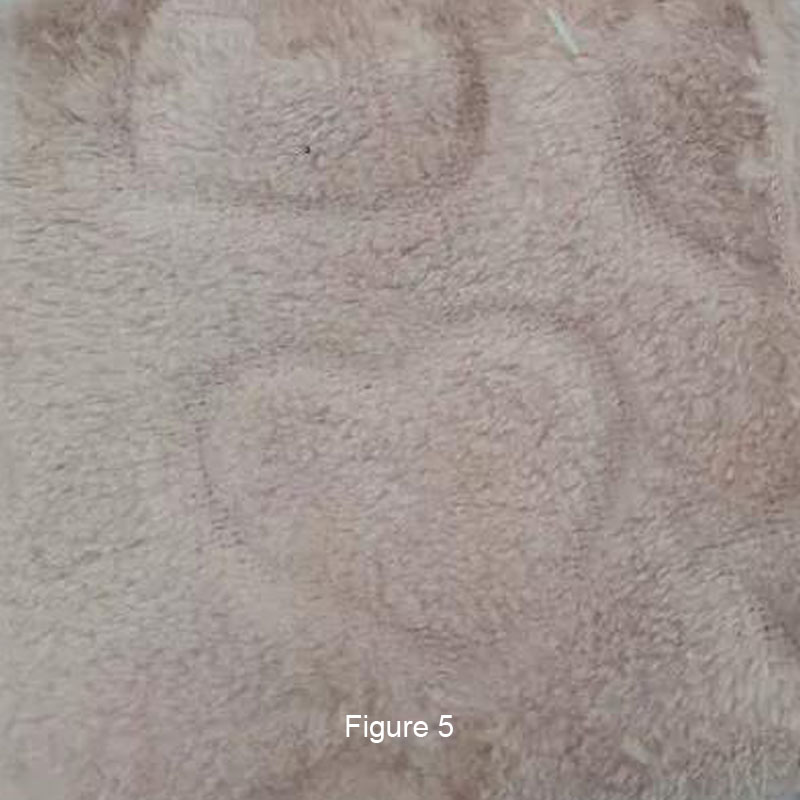

Slight: the surface fluff is slightly tangled, which hardly affects the appearance, as shown in Figure 5.
Moderate felting

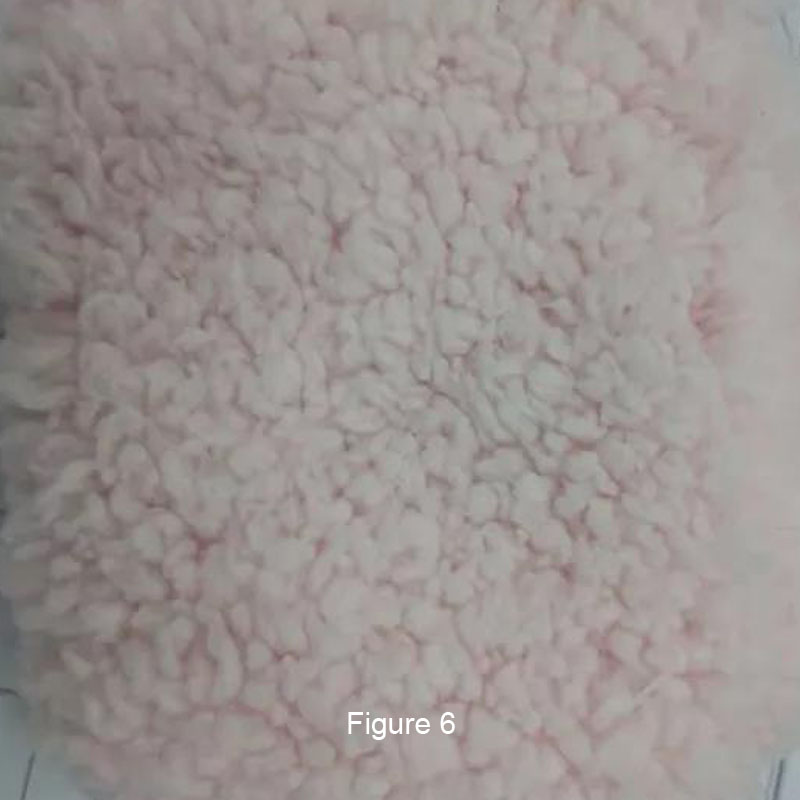

Moderate: Some velvet rosetting, some of the ends of some fluffs are tangled together to form moderate appearance, as shown in Figure 6.
Obvious felting

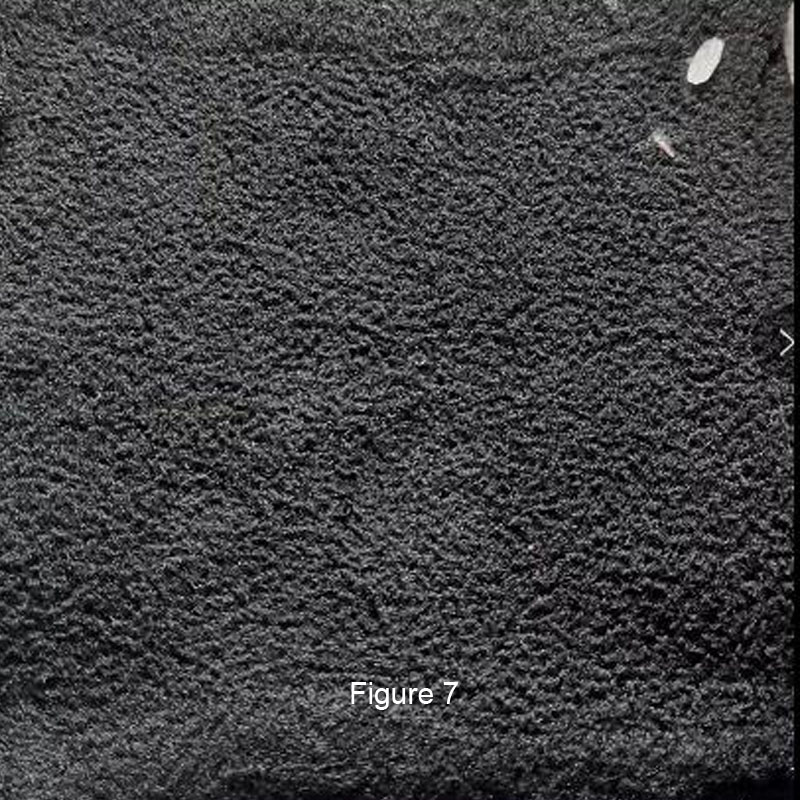

Obviously: The surface fluff is obviously entangled, and the obvious small pellet is formed, and the disorderly arrangement is distributed, and the appearance changes significantly, as shown in Figure 7.
Serious felt

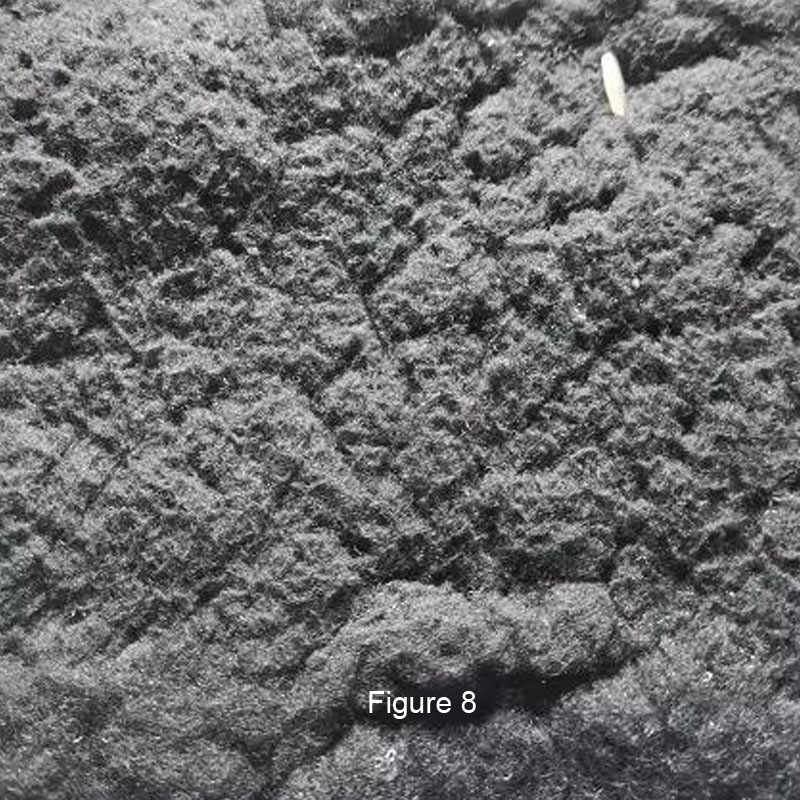

Serious: The sample surface is severely entangled, and the small pellet or pneumon is formed very clearly, and the appearance changes, as shown in Figure 8.
