1. The sample is parked in the laboratory environment for more than 8 hours
2. Cut a sample at the flat part of the sample, if it is an insole, it should be cut to the transfer part
3. Remove the load and load shaft from the testing machine
4. Remove the top plate and test fixture
5. Device for the sample: Loosen the fixing ring on the test fixture, remove the sample tablet, place the sample in the base of the test fixture, and place a sample gasket between the sample and the base of the test fixture. Place the sample compression piece on the sample gasket and fix it with the fixing ring
6. The device of wool felt and friction cloth: Loosen the fixing screw to fix the fixing ring, place the wool felt on the base and then lay the friction cloth, press the 2.5KG pressure plate on the middle of the friction cloth, put the fixing ring back and Tighten the fixing screws
7. Put back the top plate, put the load shaft (12KPA) through the round hole of the top plate
8. Put the test fixture with the sample face down on the base fixture, adjust the circular groove of the test fixture to align with the load shaft, so that the load shaft is inserted into the circular groove of the test fixture
9. According to the standard set times, start the switch, start the test, and automatically stop after reaching the set times.
AVENO
Machine Recommend:

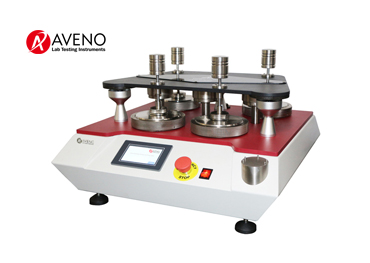

AG04 Martindale Abrasion and Pilling Tester
