model :
AF50Brand:
AVENOorigin:
ChinaLead Time：
3days, in stockport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

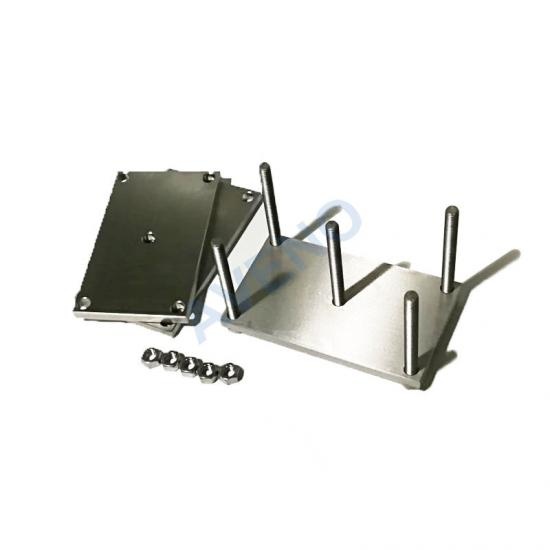

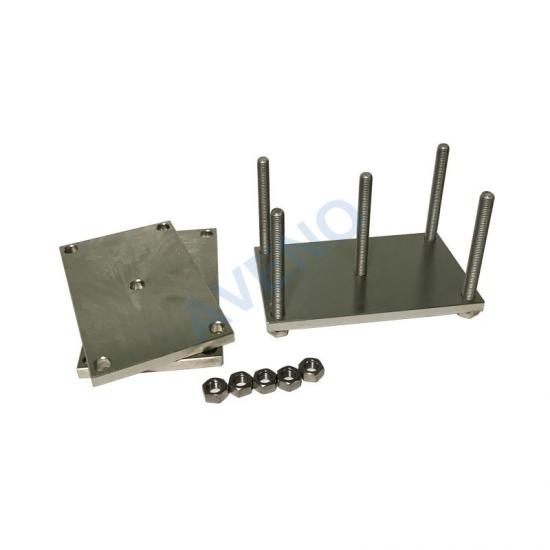

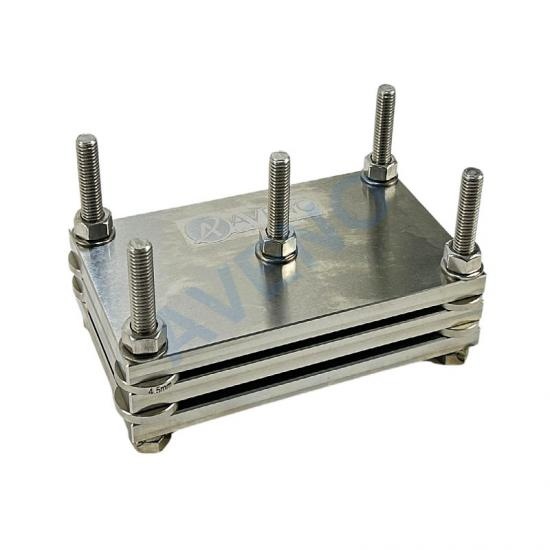

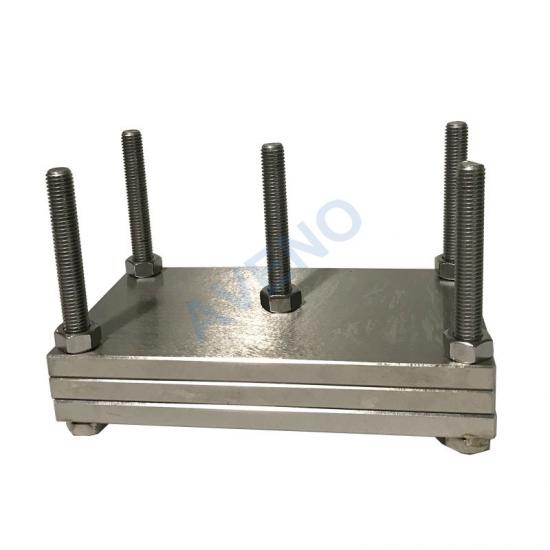

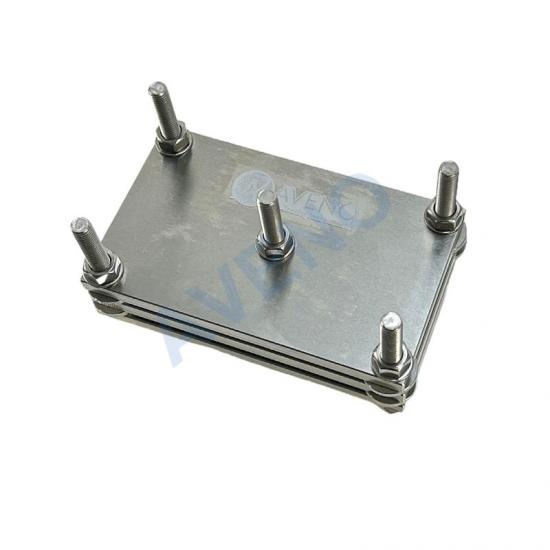

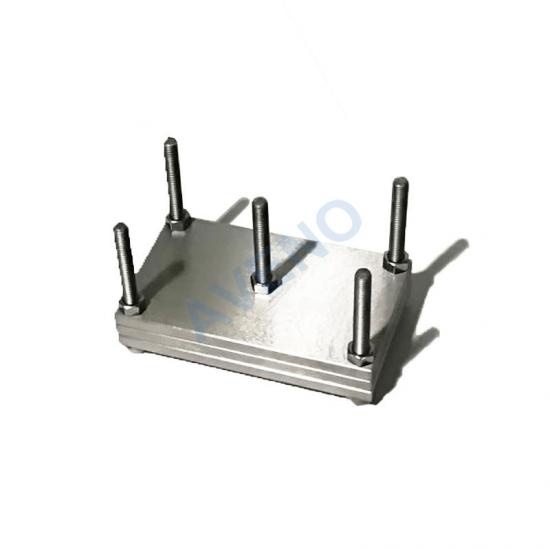

ASTM D395, GB/T 7759, GB/T 6669, CNS 3560, CNS 10487, JIS K6301, ISO 815, ISO 1856AF50-Compression And Deformation Tester
Application Of Compression And Deformation Tester
Compression And Deformation Tester used in rubber static compression test.
Test Principle Of Compression And Deformation Tester
During test, take the standard test piece, clip it between the compression plate of the device, rotate it with screws, compress it to a certain ratio, put it into a oven(separately purchased, model: AC12) at a certain temperature , take it out after a specified time, remove the test piece, cool it for 30 minutes, and measure its thickness. The degree of compression resistance is calculated according to the formula.
Standards Of Compression And Deformation Tester
ASTM D395, GB/T 7759, GB/T 6669, CNS 3560, CNS 10487, JIS K6301, ISO 815, ISO 1856
Key Specification Of Compression And Deformation Tester
|
Model |
AF50 Compression And Deformation Tester |
|
Sample size |
Diameter: 28.68mm, Thickness 12.7mm |
|
Material |
SUS304 stainless steel |
|
Compression plate size |
20 cm × 12 cm |
|
Spacer ring thickness |
4.5mm, 5mm, 7.6mm, 8.9mm, 9.5mm, 10.2mm, 12.5mm |
|
Dimension (W×D×H) |
20×12×10 cm |
|
Weight |
10 kg |
Accessories Of Compression And Deformation Tester
|
Standard Accessories |
4.5mm spacer rings |
10pcs |
|
9.5mm spacer rings |
10pcs |
|
|
Option Accessories |
Different size of spacer rings (4.5mm, 5mm, 7.6mm, 8.9mm, 9.5mm, 10.2mm, 12.5mm) |
|
