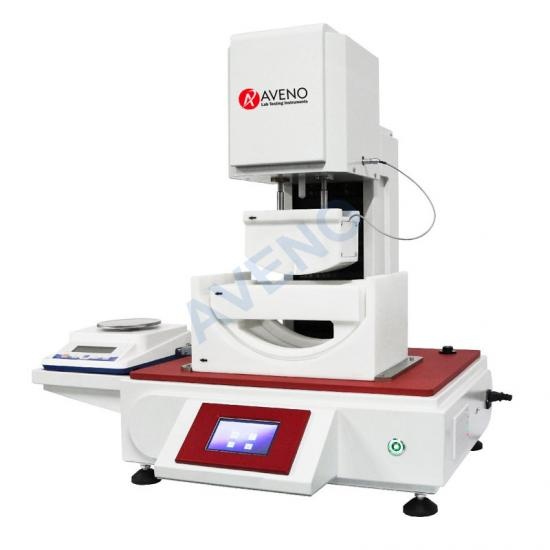

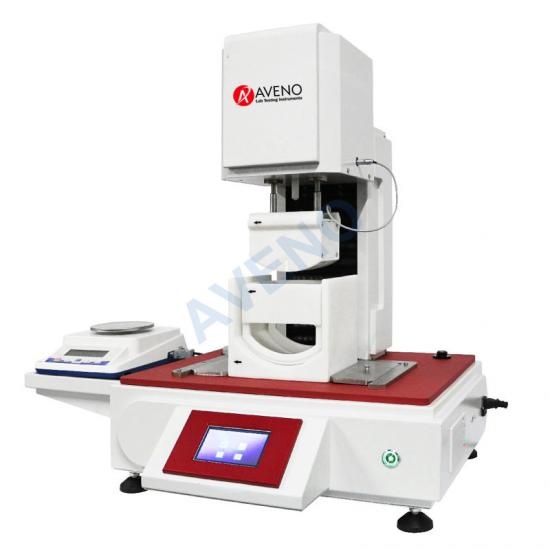

Diaper Penetration Tester AZ02-5
Diaper Penetration Tester is used to measure the permeation properties of diapers and diapers, such as the absorption rate, the amount of rewet and the amount of leakage.
+8615280858852
Diaper Penetration Tester is used to measure the permeation properties of diapers and diapers, such as the absorption rate, the amount of rewet and the amount of leakage.
model :
AZ02Brand:
AVENOorigin:
ChinaLead Time:
3-7 daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:
GB/T 28004.1-2021 Diapers Part 1: Baby Diapers GB/T 28004.2-2021 Diapers Part 2: Adult DiapersAZ02-Diaper Penetration Tester
Application Of Diaper Penetration Tester
Diaper Penetration Tester is used to measure the permeation properties of diapers and diapers, such as the absorption rate, the amount of rewet and the amount of leakage.
Feature Of Diaper Penetration Tester
Standards Of Diaper Penetration Tester
GB/T 28004.1-2021 Diapers Part 1: Baby Diapers
GB/T 28004.2-2021 Diapers Part 2: Adult Diapers
Key Specification Of Diaper Penetration Tester
Model |
AZ02 Diaper Penetration Tester |
Control mode |
Touch screen control |
Accuracy of timing device |
0.01s |
Liquid addition device |
deviation of liquid addition volume ±2mL, liquid addition flow rate: 200~800mL/min |
|
Capacity 2L Baby diapers: (40±2) ml/ (60±2) ml/ (80±2) ml Baby diapers sheet: (30±2) ml/ (40±2) ml/ (50±2) ml Adult diapers: (100±2) ml/ (150±2) ml Adult diapers sheet: (70±2) ml/ (100±2) ml |
Dosing flow rate |
Baby: (480±10) ml/min Adult: (720±15) ml/min |
Add hydraulic pressure |
(2.0±0.2) kPa |
Pressurized pressure |
(4.0±0.2) kPa |
Power supply |
AC220V, 50/60Hz |
Dimension |
82*60*75cm |
Weight |
65kg |
Standard test dosing module:
Baby |
W |
(80±1)mm(M1) |
(85±1)mm(M2) |
(95±1)mm(M3) |
L |
(100±1)mm(M1) |
(108±1)mm(M2) |
(125±1)mm(M3) |
|
Adult |
W |
(70±1)mm(M1) |
(95±1)mm(M2) |
/ |
L |
(170±1)mm(M1) |
(170±1)mm(M2) |
/ |
Standard Test Pressurization Module:
Baby |
W |
(80±1)mm(Y1) |
(85±1)mm(Y2) |
(95±1)mm(Y3) |
L |
(100±1)mm(Y1) |
(108±1)mm(Y2) |
(125±1)mm(Y3) |
|
Adult |
W |
(70±1)mm(Y1) |
(95±1)mm(Y2) |
/ |
L |
(170±1)mm(Y1) |
(170±1)mm(Y2) |
/ |

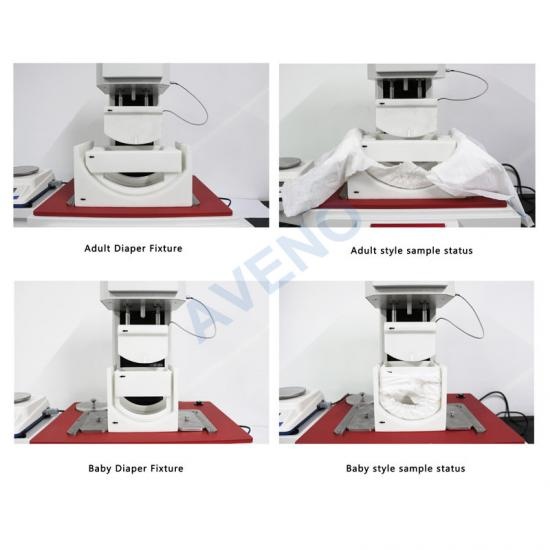

Fixture stand:
Baby |
U-shaped sample stand |
W |
(122±1)mm(B1) |
(135±1)mm(B2) |
(152±1)mm(B3) |
L |
(125±1)mm(B1) |
(136±1)mm(B2) |
(154±1)mm(B3) |
||
Adult |
Curved sample stand
|
319mm×200mm |
Accessories Of Diaper Penetration Tester
Standard Accessories |
Child fixture 3set / Adult fixture 2set |
(optional) |
Power line |
1 set |
|
English Operate manual |
1pc |
|
Operate video |
1pc |
|
Quality certification |
1pc |
