Power Battery Nail Penetrating Tester is used to simulate the power battery penetrating process of the sharp metal object.
model :
AJ04Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
GB/T31485-2015, QC/T741-2014, QC/T742-2006, QC/T743-2006, QC/T744-2006, GB/T18333.2-2015

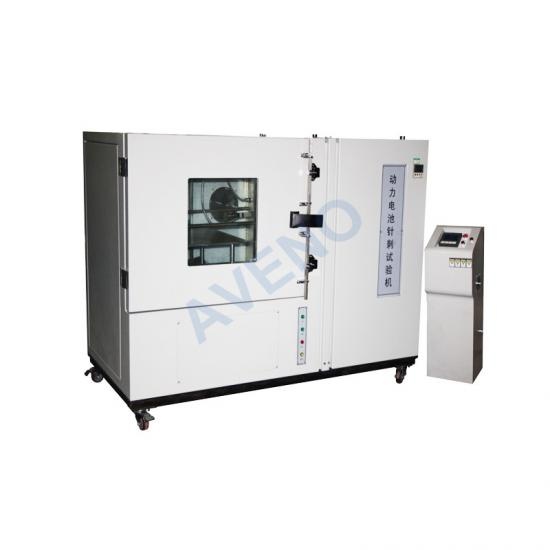

AJ04-Power Battery Nail Penetrating Tester
Application Of Power Battery Nail Penetrating Tester
Power Battery Nail Penetrating tester is used to simulate the power battery penetrating process of the sharp metal object. After the power battery is penetrated, the performance and the safety of the battery are changed after the internal damage. If the battery catches fire, the explosion is not up to standard.
Standards Of Power Battery Nail Penetrating Tester
GB/T31485-2015, QC/T741-2014, QC/T742-2006, QC/T743-2006, QC/T744-2006, GB/T18333.2-2015
Key Specification Of Power Battery Nail Penetrating Tester
|
Model |
AJ04 Power Battery Nail Penetrating Tester |
|
Control model |
Touch screen control, LCD control (optional) |
|
Penetrating force |
50～1000KN, can be custom made |
|
Force accuracy |
±1% |
|
Steel needle |
ф5～ф10mm, High temperature resistant tungsten steel needle |
|
Penetrating stroke |
500mm |
|
Penetrating speed |
10～40mm/s, can be set |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
130*90*210cm |
|
Weight |
750kg |
