model :
AG39Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

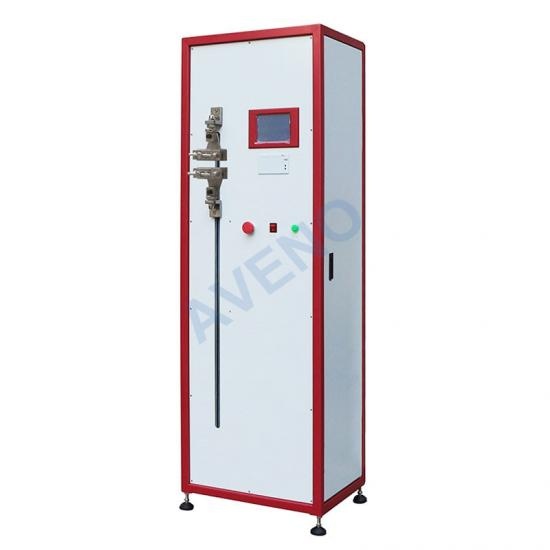

FZ/T 01034, FZ/T 01062, ASTM D4964, BS 4592AG39-Electronic Elastic Strength Tester
Application Of Electronic Elastic Strength Tester
Electronic Elastic Strength Tester is used to test the elastic properties of various socks, knitted underwear, woven fabrics, spandex, spandex cored wire, slings and elastic bands.
Feature Of Electronic Elastic Strength Tester
Standards Of Electronic Elastic Strength Tester
FZ/T 01034, FZ/T 01062, ASTM D4964, BS 4592
Key Specification Of Electronic Elastic Strength Tester
|
Model |
AG39 Electronic Elastic Strength Tester |
||
|
Force measurement range |
Model |
AG39 -5 |
AG39 -50 |
|
Full scale |
50N |
500N |
|
|
Measurement range |
1% to 100% of full scale |
||
|
Working mode |
CRE principle, microcomputer control, LCD display, can be connected to computer |
||
|
Sampling frequency |
1000 times / sec |
||
|
Test accuracy |
≤0.2%F·S |
||
|
Stretching speed |
50 ~ 1000mm / min |
||
|
Max.elongation |
800mm |
||
|
Elongation resolution |
0.01mm |
||
|
Power supply |
AC220V 50/60HZ |
||
|
Dimensions |
52 x40 x160cm |
||
|
Weight |
60Kg |
||
