Battery Nail Penetrating tester is used to test the safety performance of battery by penetrating test.
model :
AJ03Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
MT/T1051, GB/T18332, GB/T8897.4, QC/T473/744, QC/T743, YD/B032

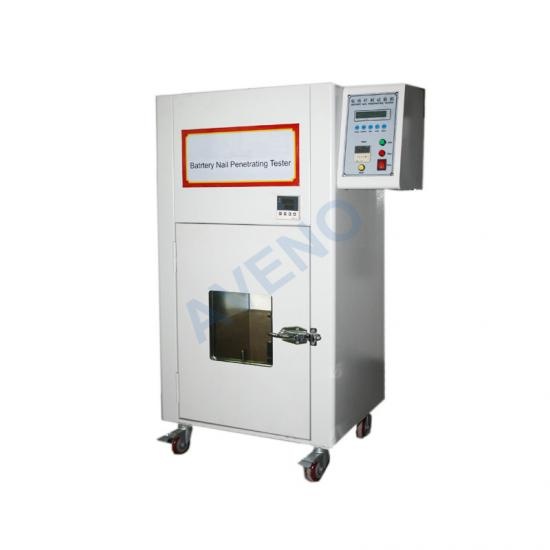

AJ03-Battery Nail Penetrating Tester
Application Of Battery Nail Penetrating Tester
Battery Nail Penetrating Tester is used to test the safety performance of battery by penetrating test. Through the real-time test data to determine the test results (such as battery voltage, battery surface maximum temperature, pressure), the battery should not catch fire, explode, smoke after the end of the penetrating test, and is also an indispensable testing equipment for battery manufacturers and research institutes.
Standards Of Battery Nail Penetrating Tester
MT/T1051, GB/T18332, GB/T8897.4, QC/T473/744, QC/T743, YD/B032
Key Specification Of Battery Nail Penetrating Tester
|
Model |
AJ03 Battery Nail Penetrating Tester |
|
Control model |
Touch screen control, LCD control (optional) |
|
Steel needle |
φ 3mm ~ φ 8mm, 100mm length, can be custom made (high temperature resistant steel needle) |
|
Penetrating stroke |
200mm, 300mm |
|
Clamping distance |
200mm |
|
Unit |
Kg, N, LB (can be set) |
|
Penetrating speed |
10～40mm/s, can be set |
|
Penetrating force |
1～20KN |
|
Force accuracy |
±1% |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
65*60*75cm |
|
Weight |
100kg |
Battery Short Circuit Tester is used to test whether the battery will explode and catch fire under the condition of a certain resistance short connection, and the maximum current of the short connection will be displayed by the relevant instrument.
Battery Short Circuit Tester is used to test whether the battery will explode and catch fire under the condition of a certain resistance short connection under different temperature condition, and the maximum current of the short connection will be displayed by the relevant instrument.
Power Battery Nail Penetrating Tester is used to simulate the power battery penetrating process of the sharp metal object.
Battery Extrusion Tester is suitable for simulating the situation in which the batteries are compressed when they are used, transported, stored or disposed of household waste.
Power Battery Extrusion Tester is used to simulate the extrusion of all kinds of battery monomer, module, battery package and battery system.
Battery Comprehensive Short Circuit Tester is to simulate the forced internal short circuit test of the battery at a certain ambient temperature.
