Battery Comprehensive Short Circuit Tester is to simulate the forced internal short circuit test of the battery at a certain ambient temperature.
model :
AJ07Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
IEC62133-2012, JIS C 8714:2007

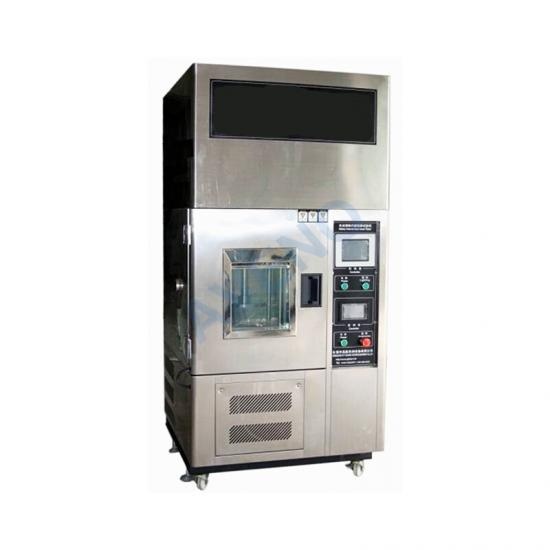

AJ07-Battery Comprehensive Short Circuit Tester
Application Of Battery Comprehensive Short Circuit Tester
Battery Comprehensive Short Circuit Tester is to simulate the forced internal short circuit test of the battery at a certain ambient temperature. The test box is made of stainless steel with good temperature uniformity and exhaust air function (exhaust gas is discharged after the test is completed).
Standards Of Battery Comprehensive Short Circuit Tester
IEC62133-2012, JIS C 8714:2007
Key Specification Of Battery Comprehensive Short Circuit Tester
|
Model |
AJ07 Battery Comprehensive Short Circuit Tester |
|
Temperature control system: |
|
|
Temperature range |
temperature control system |
|
Temperature accuracy |
0.1℃ |
|
Temperature volatility |
±0.5℃ |
|
Temperature uniformity |
±2℃ |
|
Temperature raise rate |
3℃/min |
|
Temperature reduce rate |
1℃/min |
|
Chamber dimension |
50*50*50cm |
|
Pressure control system: |
|
|
Pressure capacity |
1KN |
|
Load resolution |
1/10000 |
|
Load accuracy |
≤±0.5% FS |
|
Displacement accuracy |
±0.05mm |
|
Speed range |
0.01～20mm/s, can be set |
|
Test plane |
200x200mm (customizable) |
|
Pressure head dimension |
5x5x2mm, 10x10x2mm, 10x10x15mm |
|
Pressure head material |
Nitrile rubber 1pc, acrylic 1pc |
Battery Short Circuit Tester is used to test whether the battery will explode and catch fire under the condition of a certain resistance short connection, and the maximum current of the short connection will be displayed by the relevant instrument.
