ISO 8124-1 ASTM F963 EN 71-1 Toy Safety Sharp Edge Tester AT25
Toy Safety Sharp Edge Tester is used to evaluate whether accessible edges on toys or other products are likely to cause injury.
+8615280858852

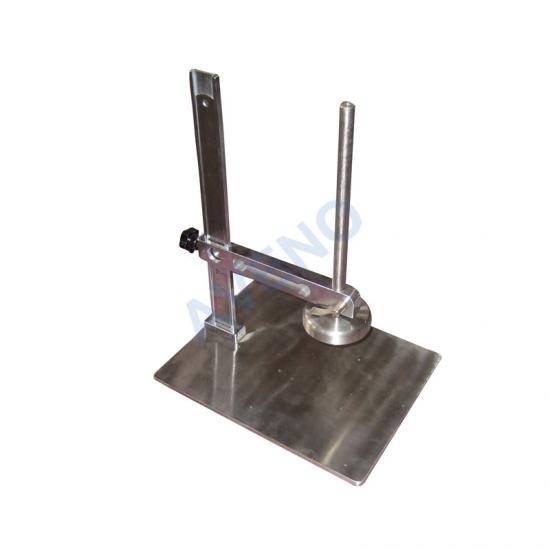

EN Impact Test Table is used to test the risks arising from material damage or imitation of protective device toys as true protector surfaces.
model :
ATB13Brand:
AVENOorigin:
ChinaLead Time:
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
EN 71-1 section 8.7, ISO 8124-1 section 5.33, ASTM F963 section 8.24.4.2ATB13-EN Impact Test Table
Application Of EN Impact Test Table
EN Impact Test Table is used to test the risks arising from material damage or imitation of protective device toys as true protector surfaces.
Test Principle Of EN Impact Test Table
1. Place weakest position of the toy on a horizontal steel surface.
2. The metal blocks with a mass of 1 ±0.02kg and a diameter of 80 ±2mm were freely dropped from the height of 100 ±2mm to the toy.
3. Retest again.
4. If the toy appear sharp point, sharp edge, small parts or burst phenomenon, then the toy is unqualified.
Standards Of EN Impact Test Table
EN 71-1 section 8.7
ISO 8124-1 section 5.33
ASTM F963 section 8.24.4.2
Key Specification Of EN Impact Test Table
Model |
ATB13 EN Impact Test Table |
Floor size |
300(l)x300(w)x16(h)mm |
Impact height |
0-140mm, adjustable |
Impact hammer diameter |
80.00mm |
Impact hammer weight |
1Kg |
