ISO 8124-1 ASTM F963 EN 71-1 Toy Safety Sharp Edge Tester AT25
Toy Safety Sharp Edge Tester is used to evaluate whether accessible edges on toys or other products are likely to cause injury.
+8615280858852
Glow Wire Tester is used for electrical and electronic components or parts under the condition of failure or overload, which may reach too high temperature or ignite parts near them.
model :
AT22Brand:
AVENOorigin:
ChinaLead Time:
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
IEC60695 - 2 - 10 / 11 / 12 / 13, IEC60884-1-2002, GB2099.1-2008, IEC60335-1, GB4706.1-2005, VDE0620-2010AT22-Glow Wire Tester

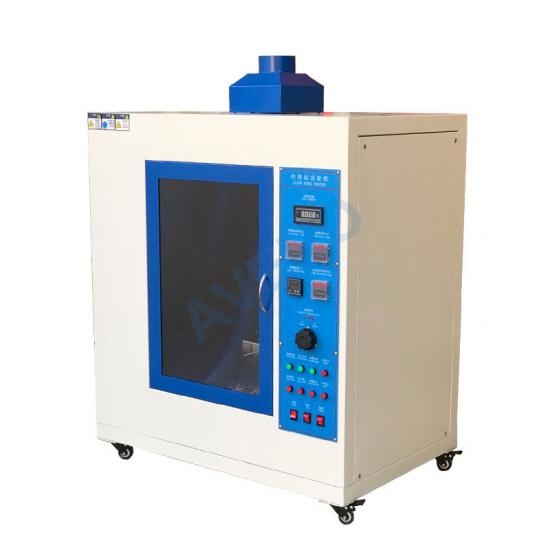

Application Of Glow Wire Tester
Glow Wire Tester is used for electrical and electronic components or parts under the condition of failure or overload, which may reach too high temperature or ignite parts near them. The hot wire test simulates the thermal stress caused by heat sources or ignition sources such as burning components or overload resistors in a short period of time. The simulation technology is used to fire risk. It is suitable for plastic and non-metallic insulating material parts such as switch case, relay socket and so on for electrical and electronic products, components, relay socket, etc.
Standards Of Glow Wire Tester
IEC60695 - 2 - 10 / 11 / 12 / 13, IEC60884-1-2002, GB2099.1-2008, IEC60335-1, GB4706.1-2005, VDE0620-2010
Key Specification Of Glow Wire Tester
|
Model |
AT22-Glow Wire Tester |
|
Chamber volume |
0.5 m³ |
|
Chamber Illumination |
<20LUX |
|
Glow wire temperature |
RT-~ 1000℃, can be set |
|
Temperature Error |
500 ~ 750℃±5℃, 750 ~ 960℃±10℃ |
|
Pressure by the glow wire to sample |
1.0 ± 0.2N, Limit indentation depth 7mm± 0.5mm |
|
Timer |
0-99min99s, adjustable |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
106*76*130cm |
|
Weight |
108KG |
Glove Impact Testing Equipment used to test the impact resistance of gloves, motorcycle protective clothing, knee pads, etc. During the experiment, lift the impact hammer to the height of the required impact energy, release the impact hammer, and drop it along a vertical guide path onto the sample placed on the test anvil. The center axis of the falling hammer coincides with the center axis of the anvil. Record the peak force of the impact test and check whether the sample is torn or perforated.
read moreSeat Belt Friction Tester is used to simulate the pilling changes of clothing caused by seat belt friction.
read moreAccording to the bending force of the sample, according to the standard spacing and load weight requirements, perform reciprocating bending resistance under the specified testing speed conditions, observe whether there are cracks, coating peeling, adhesive delamination and other abnormal quality conditions on the surface, suitable for belt, shoulder strap, luggage soft lift and other belt products
read moreDouble row LCD display, front and rear two display screen. Rechargeable battery. Weighing, peeling, counting, unit conversion. RS232 data interface, linking computers and printers.
read moreAlcohol Rubber Abrasion Tester used for glass cover plates, films, plastics, automotive parts, rubber, leather and textiles, electroplating, freely detachable components, paints, printed patterns and other products.
read more
