Large Channel Kinectic Energy Tester is an instrument that detects the speed of objects passing through a test tunnel. Based on the read out results and the mass value of the measured object, the dynamic energy value of the measured object can be calculated to understand the degree of danger of the measured object.
model :
AT28BBrand:
AVENOorigin:
ChinaLead Time：
7days， in stockport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025AT28B-Large Channel Kinectic Energy Tester
Application Of Large Channel Kinectic Energy Tester

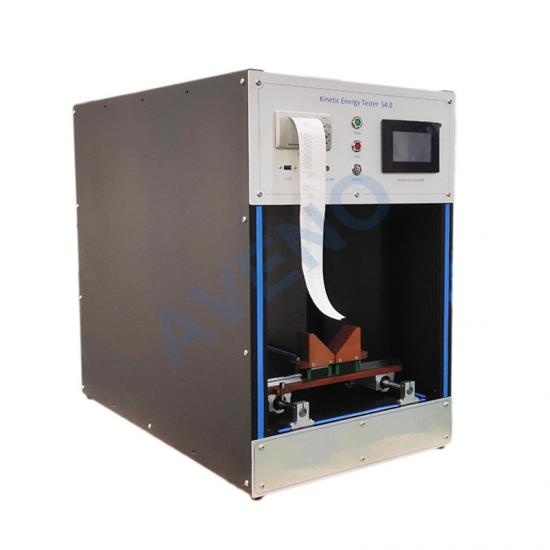

AT28B Large Channel Kinectic Energy Tester is an instrument that detects the speed of objects passing through a test tunnel. Based on the read out results and the mass value of the measured object, the dynamic energy value of the measured object can be calculated to understand the degree of danger of the measured object. There are three sets of infrared sensor groups in the testing tunnel of the large channel ejection kinetic energy tester. One set is used to start the timer, and the other two sets are used to stop the timer. Each group includes 30 pairs of infrared sensors. They are located on opposite boards, with infrared transmitters and receivers fixed on opposite boards, and signals are transmitted and received through a narrow gap of 1mm.
Key Specification Of Large Channel Kinectic Energy Tester
|
Model |
AT28B Large Channel Kinectic Energy Tester |
|
Control mode |
Touch screen control |
|
Channel size |
400*400mm |
|
Sense distance |
100mm/300mm (optional) |
|
Timing range |
0.000001~15.000000s |
|
Standard stock |
1-100mm, can be adjust |
|
Power supply |
AC220V, 50/60HZ |
Accessories Of Large Channel Kinectic Energy Tester
|
Standard Accessories |
Calibrate tool |
1set |
|
Power line |
1pc |
|
|
English Operate manual |
1pc |
|
|
Operate video |
1pc |
|
|
Quality certification |
1pc |
