Horizontal Flammability Tester is designed for determining the horizontal combustion performance of textiles, widely use in automotive interior material.
model :
AG32Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:
ISO 3795, ASTM D5153, JIS D1201, FZ/T 01028, GB 8410, GB/T 20953, FMVSS 302, SAE J369, GMW 3232.

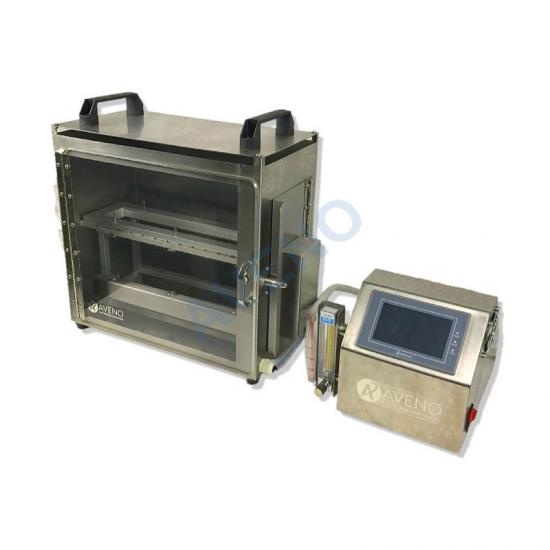

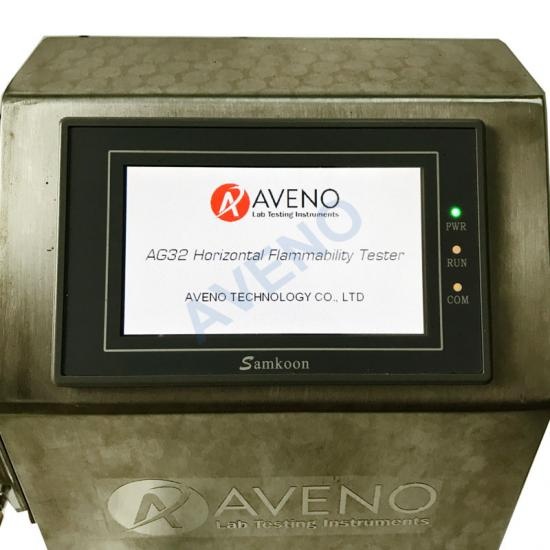

AG32-Horizontal Flammability Tester
Application Of Horizontal
Flammability Tester
Horizontal Flammability Tester is designed for determining the horizontal combustion performance of textiles, widely use in automotive interior material.
Feature Of Horizontal Flammability Tester

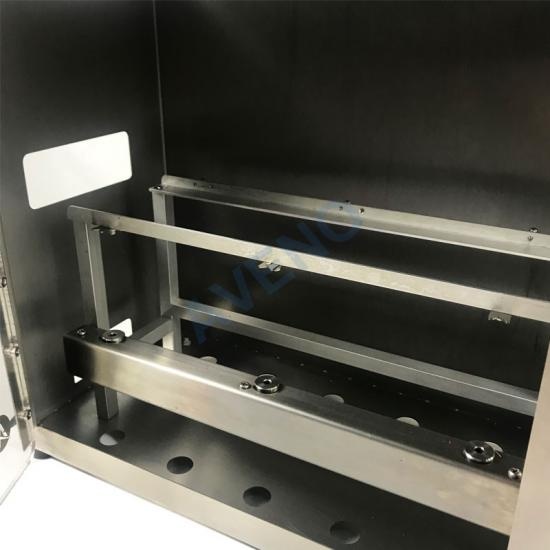

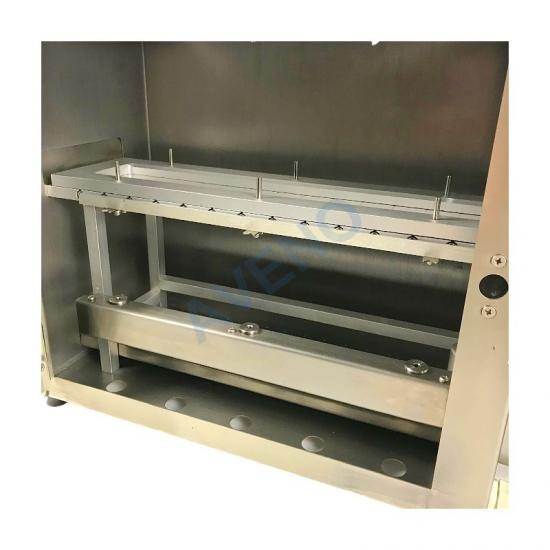

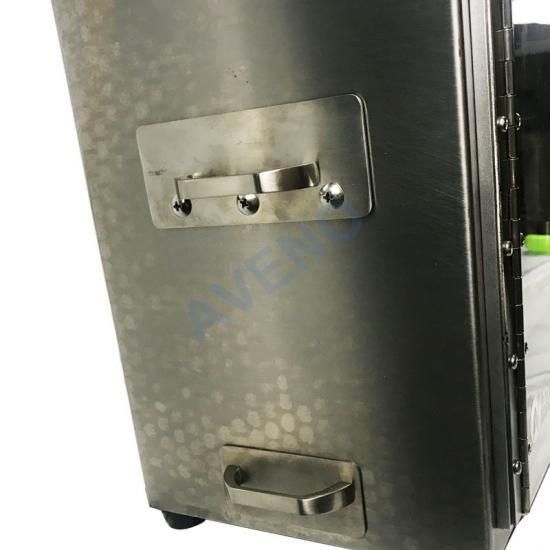

1. Test chamber and fixture use SUS304 stainless steel, with toughened glass transparent window, neat and convenient to observe the sample changes during testing.

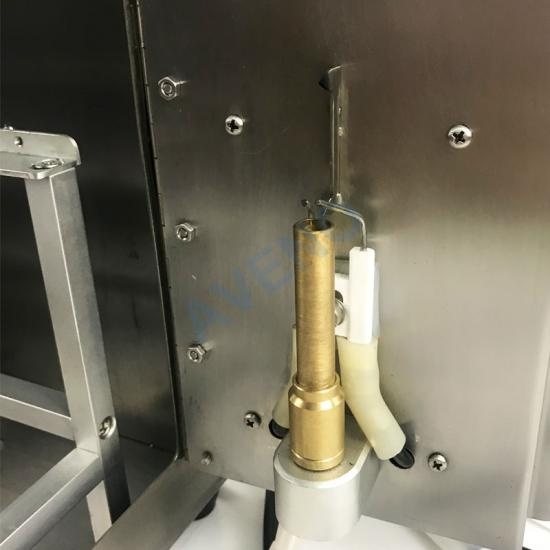

2. Ignition device with position induction, automatic sensing sample position then start the test.
3. Automatic timing, when burning reach mark line, automatic stop time recording by sensor, exclude errors caused by human observation.
4. Circulation ventilation system for long-term cooling of the instrument to ensure stable internal environment
Standards Of Horizontal Flammability Tester
ISO 3795, ASTM D5153, JIS D1201, FZ/T 01028, GB 8410, GB/T 20953, FMVSS 302, SAE J369, GMW 3232.
Key Specification Of Horizontal Flammability Tester
|
Model |
AG32 Horizontal Flammability Tester |
|
Test chamber dimension |
381*203*356mm (with 10 bottom vent, φ19mm) |
|

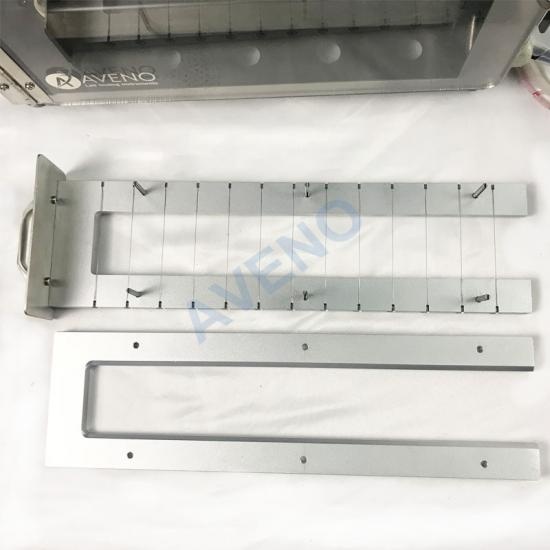

Sample fixture |
U sharp, inner size 330*50mm |
|
Sample size |
356*100mm, thickness ≤13mm |
|
Ignition height |
19mm |
|
Nozzle internal diameter |
9.5mm |
|
Nozzle angle |
Vertical |
|
Flame height |
38mm |
|
Marking line distance |
254mm |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
57*26*37cm |
|
Weight |
28kg |
|
Standard Accessories |
Sample holder |
1pc |
|

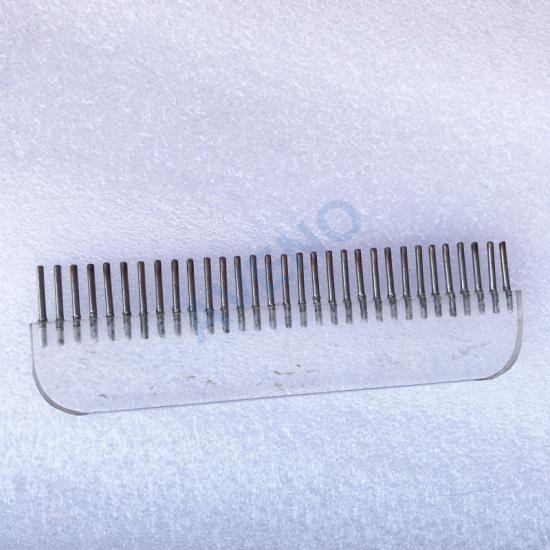

Metal comb |
1pc |
|
|
Gas feed device |
1set |
|
|
Power line |
1pc |
