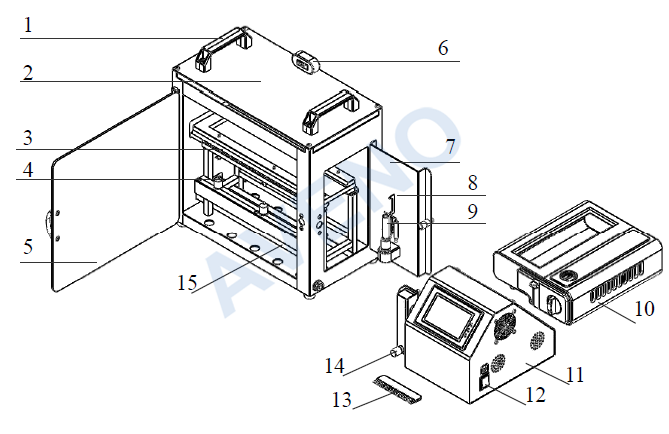

1. Instrument structure of Horizontal Combustibility test machine
1. Handle 9. Burner
2. Test chamber 10.Air feeder
3. Sample fixture 11.Control cabinet
4. Hammer 12.Power switch
5. Chamber door 13.Metal comb
6. Thermometer Jack 14. Flame adjusting knob
7. Fire nozzle gate 15. Dust collecting disk
8. Flame measuring rule
2. Functional Descriptiono of Horizontal Flammability Test instrument
-
Handle: Convenient moving instrument
-
Test chamber: The main body of the test instrument provides an independent space for the test.
-
Chamber door: The transparent observation window facilitates observation and testing.
-
Dust collecting disk: Collection of droplets from combustion tests
-
Sample fixture: Sample fixing fixture
-
Flame measuring rule: Flame height gauge.
-
Thermometer Jack: Insert a thermometer to measure the temperature in the test box.
-
Control cabinet: Control instrument test
-
Burner: Flame generator
-
Hammer: Provides tension to the marking line and triggers the timing sensor
