MID Folding Endurance Tester is used test folding fatigue strength of flake materials for testing paper, cardboard, non - woven, fiberglass, leather, cloth, copper foil, wire arrangement, etc.
model :
AN16Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

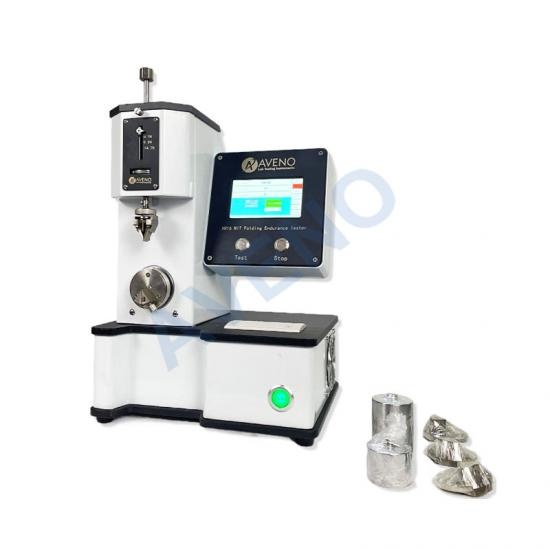

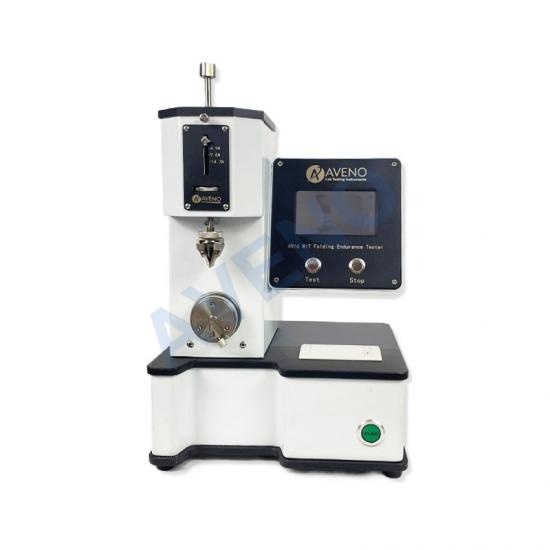

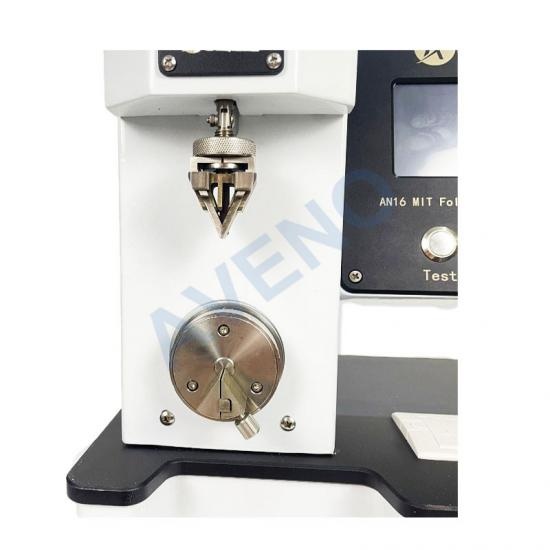

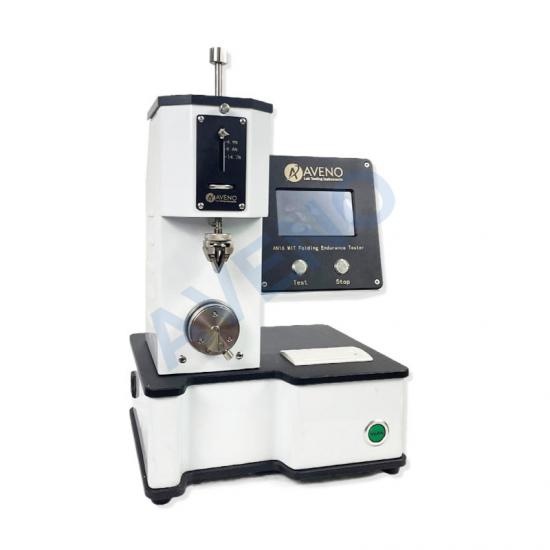

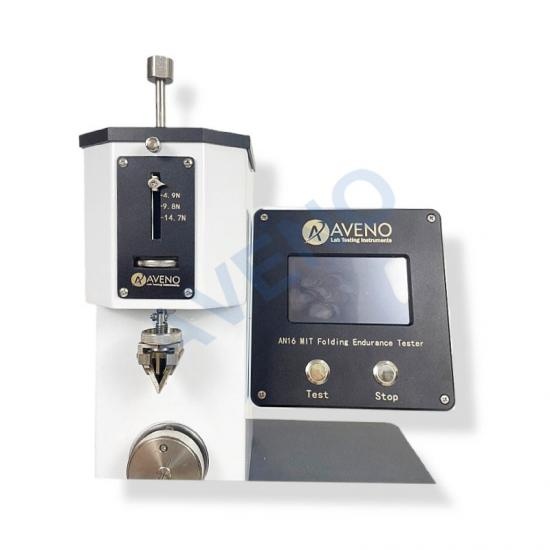

GB/T457, QB2679.5, ISO 5626AN16- MID Folding Endurance Tester
Application Of MID Folding Endurance Tester
MID Folding Endurance Tester is used test folding fatigue strength of flake materials for testing paper, cardboard, non - woven, fiberglass, leather, cloth, copper foil, wire arrangement, etc.
Standards Of MID Folding Endurance Tester
GB/T457, QB2679.5, ISO 5626
Key Specification Of MID Folding Endurance Tester
|
Model |
AN16 MID Folding Endurance Tester |
|
Control mode |
LCD control |
|
Folding angle |
135±2° |
|
Folding speed |
175±10times/min |
|
Spring tension |
3 point tension setting: 4.91、9.81N、14.72N Non-polar tension adjustable: 4.91~18.0N |
|
Upper griper thickness range |
0.1-2.30 mm |
|
Upper griper width range |
0.1-16.0 mm |
|
Printout |
Thermal printer |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
30*30*40 |
|
Weight |
35kg |
