Flammability Testing Nailed Fixture AT46
Flammability Testing Nailed Fixture is mainly used for testing the combustion performance of cloth toys and filling materials.
+8615280858852
AT27 Toy Inflammability Tester is used for testing the flammability of toys or toy materials.
model :
AT27Brand:
AVENOorigin:
ChinaLead Time:
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
EN71-2, ISO8124-2, GB 6675.3AT27-Toy Inflammability Tester
Application Of Toy Inflammability Tester
Toy Inflammability Tester is used for testing the flammability of toys or toy materials.
Test sample range Of Toy Inflammability Tester
Principle Of Toy Inflammability Tester
The finished sample or material sample is mounted on the corresponding fixture, and use the required flame to burn the sample for a certain period of time., then record relevant data (such as burning time, burning rate) for evaluating the combustion performance.
Standards Of Toy Inflammability Tester
EN71-2
ISO8124-2
GB 6675.3
Key Specification Of Toy Inflammability Tester
Model |
AT27 Toy Inflammability Tester |
Setting range of ignition time |
0~99.9s |
Burning timing range |
0~99.9s |
Fire nozzle |
According to ISO 6941 |
Fire nozzle angle |
Angle with horizontal line: 0°/45°/90° (adjustable) |
Test flame height |
20mm/40mm |
U-shaped clamp inner frame |
80mmx600mm |
U-shaped fixture marking line position |
The 1st marking line is 50mm from the bottom of the fixture; The 2nd marking line is 500mm away from the first marking line |
Combustion gas |
Butane gas |
Power supply |
AC 220V 50/60Hz |
Dimension (WxDxH) |
90x63x87cm |
Weight |
40Kg |
Zipper Fatigue Tester is used to determine the life of metal or plastic zipper under condition of specified load and specified times of stretching cycle, test for zipper in a tension action of lateral and longitudinal, it could be tested its bearing ability in reciprocating motion for a regulation time.
read moreWeight Gantry Crane is used to assist in fixing the sample in the toy safety performance test, and can also be used to raise samples and test weights.

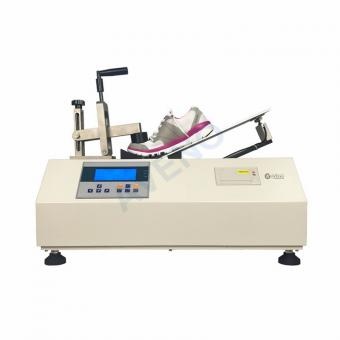

read moreDigital Internal Length Measurement is suitable for measuring the inner length of adult/child shoes.
