Textile Downproof Tester is used to test eiderdown, feather, fibre, and other lining material penetration through the fabric of cold protective clothing and bedclothes.
model :
AG21Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:

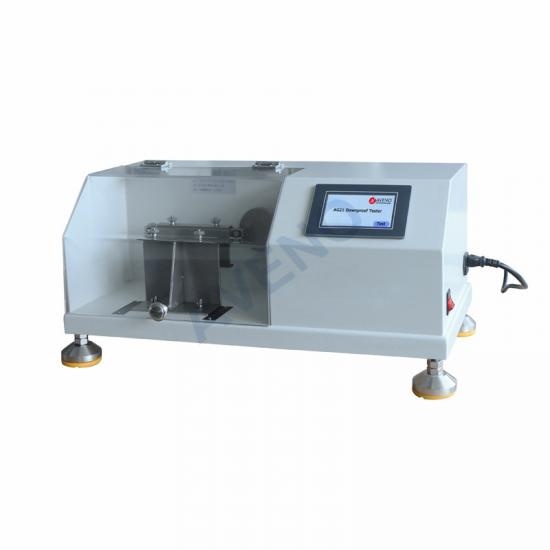

BS EN 12132, GB/T 12705.1, GB/T 14272-2011.AG21-Downproof Tester
Application Of Downproof Tester
Downproof Tester is used to test eiderdown, feather, fibre, and other lining material penetration through the fabric of cold protective clothing and bedclothes.
Standards Of Downproof Tester
BS EN 12132, GB/T 12705.1, GB/T 14272-2011.
Key Specification Of Downproof Tester
|
Model |
AG21 Downproof Tester |
|
Fixture space |
44±1mm |
|
Eccentricity |
25±0.5mm |
|
Test Speed |
135r/min |
|
Sample size |
Sample(140±5)mm, (420±10)mm |
|
sample pad size |
sample pad size |
|
Infilling size |
down feathers, feathers or both mixtures |
|
Test times |
2700circles, can be set |
|
Counter |
LED display 0~99999 can be set |
|
Dimension |
30x37x26cm |
|
Weight |
18Kg |
