Footwear Heat Resistance Contact Tester is used to test the high temperature resistance ability of footwear.
model :
AF25Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

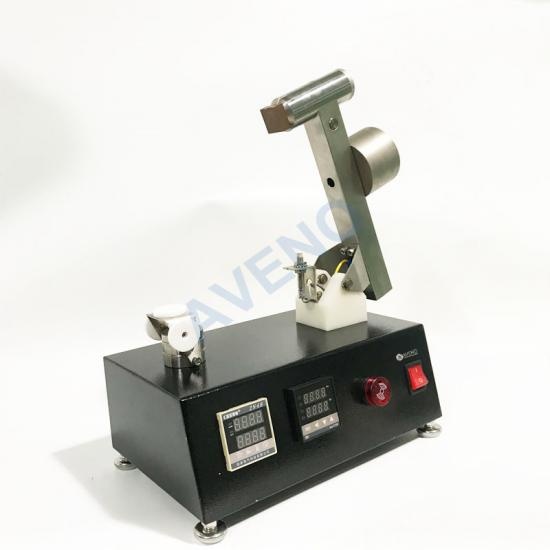

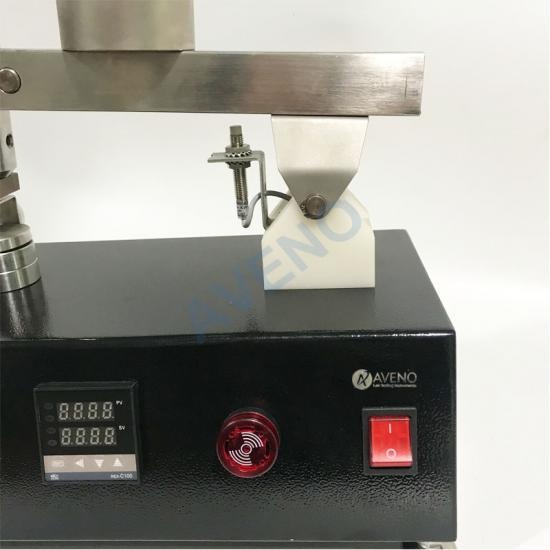

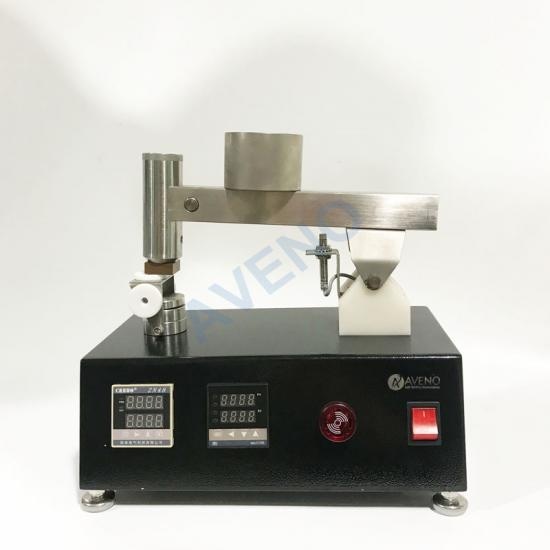

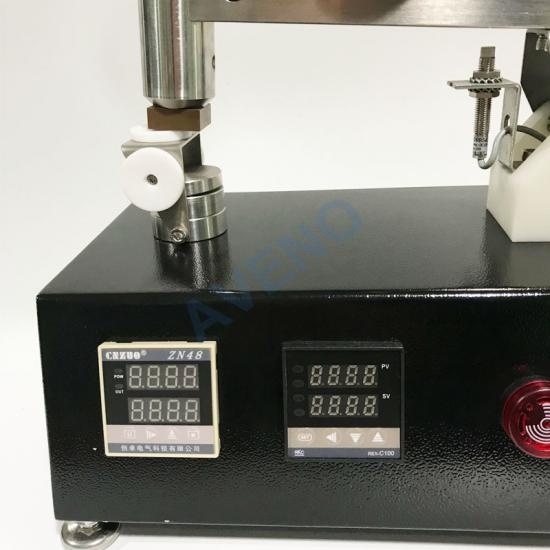

SATRA TM49, EN 344, LD32, GB/T 20991, EN ISO 20344AF25 Footwear Heat Resistance Contact Tester
Application Of Footwear Heat Resistance Contact Tester
Footwear Heat Resistance Contact Tester is used to test the high temperature resistance ability of footwear.
Contact the heat source and the and sample under a certain load about 60s, then Observe the damage of sample surface such as the softening, melting, cracking degree, according to standards to determine if the sample is qualified.
Standards Of Footwear Heat Resistance
Contact Tester
SATRA TM49, EN 344, LD32, GB/T 20991, EN ISO 20344
Key Specification Of Footwear Heat Resistance Contact Tester
|
Model |
AF25 Footwear Heat Resistance Contact Tester |
|
Sample size |
70*30mm |
|
Test temperature |
RT~400° |
|
Self-adjust table diameter |
40mm |
|
Pressure |
20±2kpa |
|
Power supply |
AC220V, 50/60HZ. |
|
Dimension |
40*30*43cm |
|
Weight |
25kg |
