DIN Rubber Abrasion Tester AF02
DIN Abrasion Tester is suitable to determine the wear resistance of elastic material, rubber, tires, conveyor belts, shoe soles, soft synthetic leather and other materials.
+8615280858852
Akron Abrasion Resistance Tester be used together with a balance to specially test the abrasion resistance of rubber products such as soles, tires, and chariot tracks. The counter adopts electronic automatic type, which can set the number of worn revolutions, reach the indefinite number of revolutions and stop automatically.
model :
AF87Brand:
AVENOorigin:
ChinaLead Time:
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
BS-903, GB/T1689, JIS-K6264, CNS-743AF87-Akron Abrasion Resistance Tester

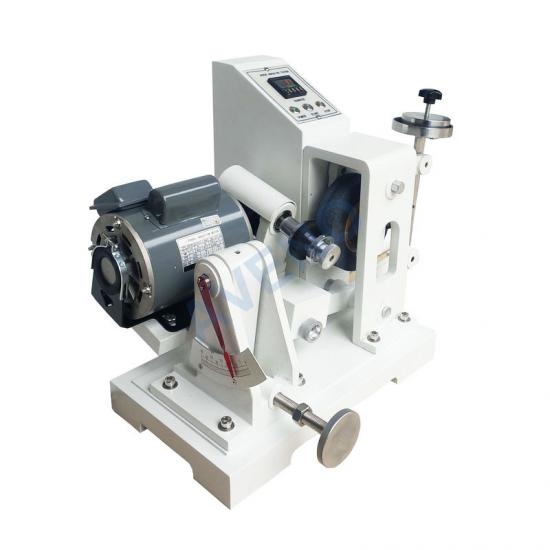

Application Of Akron Abrasion Resistance Tester
Akron Abrasion Resistance Tester be used together with a balance to specially test the abrasion resistance of rubber products such as soles, tires, and chariot tracks. The counter adopts electronic automatic type, which can set the number of worn revolutions, reach the indefinite number of revolutions and stop automatically.
Standards Of Akron Abrasion Resistance Tester
BS-903, GB/T1689, JIS-K6264, CNS-743
Principle Of Akron Abrasion Resistance Tester
Key Specification Of Akron Abrasion Resistance Tester
Model |
AF87 Akron Abrasion Resistance Tester |
Test angle range |
0-40±0.5° |
Counter |
LCD 0-99,999,999 |
Abrasive wheel |
36# |
Abrasive wheel speed |
33± 1r/min |
Rubber wheel rotation speed |
76± 2r/min |
Standard weight |
26.7±0.2N |
Grinding wheel size |
150*32*25mm |
Sample holder |
Diameter 56mm, thickness 12mm |
Rubber wheel size |
Diameter 68±1mm, thickness 12.7±0.2mm |
Power supply |
AC220V, 50/6HZ |
Dimension |
53*43*43cm |
Weight |
35kg |
Accessories Of Akron Abrasion Resistance Tester
Standard Accessories |
Cutting blade |
1pc |
Rubber wheel |
1pc |
|
Power line |
1pc |
|
English Operate manual |
1pc |
|
Operate video |
1pc |
|
Quality certification |
1pc |
