DIN Rubber Abrasion Tester AF02

DIN Rubber Abrasion Tester AF02

DIN Abrasion Tester is suitable to determine the wear resistance of elastic material, rubber, tires, conveyor belts, shoe soles, soft synthetic leather and other materials.

  • model :

    AF02
  • Brand:

    AVENO
  • origin:

    China
  • Lead Time:

    3days, in stock
  • port:

    Xiamen port
  • Payment:

    T/T, L/C
  • certificate:

    CE, ISO9001, ISO17025
  • standard:

    BS-903, ISO-4649, JIS-K6264, SATRA TM174, TM193, ASTM-D5963, QB/T 2884-2007, ISO 20871, BS EN 12770, DIN 53516, EN ISO 20344
  • Product Detail

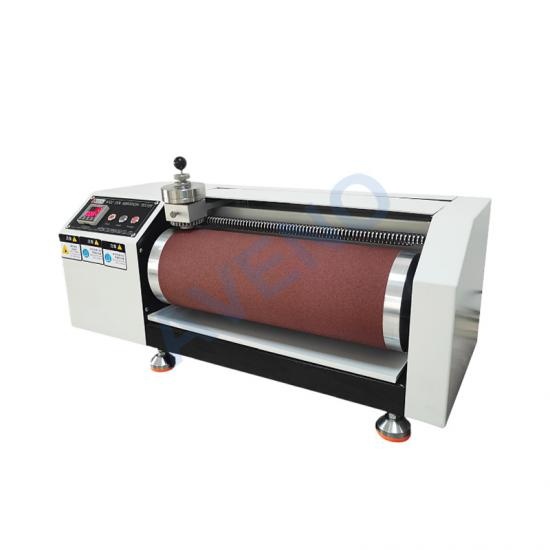

AF02 DIN Rubber Abrasion Tester


Application Of DIN Abrasion Tester

DIN Rubber Abrasion Tester is suitable to determine the wear resistance of elastic material, rubber, tires, conveyor belts, shoe soles, soft synthetic leather and other materials.



Standards Of DIN Abrasion Tester

BS-903, GB/T 9867, ISO-4649, JIS-K6264, SATRA TM174, TM193, ASTM-D5963, QB/T 2884-2007, ISO 20871:2001, BS EN 12770:2000, DIN 53516, EN ISO 20344


Key Specification Of DIN Abrasion Tester

Model

AF02 DIN Abrasion Tester

Wear wheel diameter

150mm

Sample diamension

ø16.2 mm x thickness 6-10 mm

Moving speed of the sample

4.2 mm/r

Load Weight

5N, 10N

Wear wheel speed

40rpm

Incidence angle

3°, Vertical angle between the supporting shaft of the test sample and the roller

Grit size of sand paper

#60

Rolling length

460mm

Wear stroke

40m

Power supply

AC220V, 50/60HZ

Dimensions

70*30*30cm

Weight

55kg


Accessories Of DIN Abrasion Tester

Standard Accessories

2.5N weight

1pc

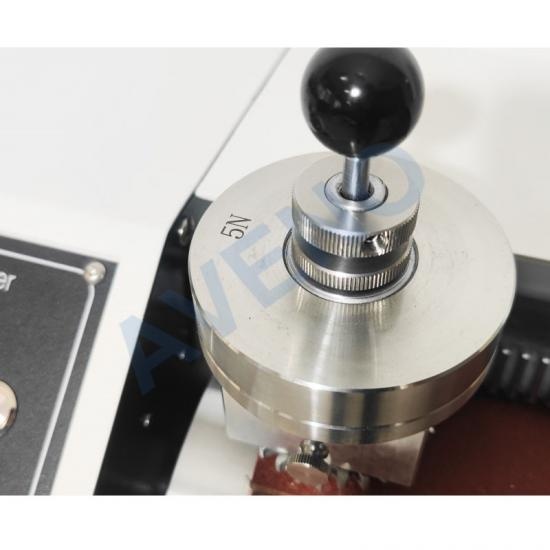

5N weight

1pc

P60# standard abrasive paper

1pc

Standard cutting die

1pc

Grinding head

1pc

Germany standard rubber

1pc

Power line

1pc

Option Accessories

Standard rubber
