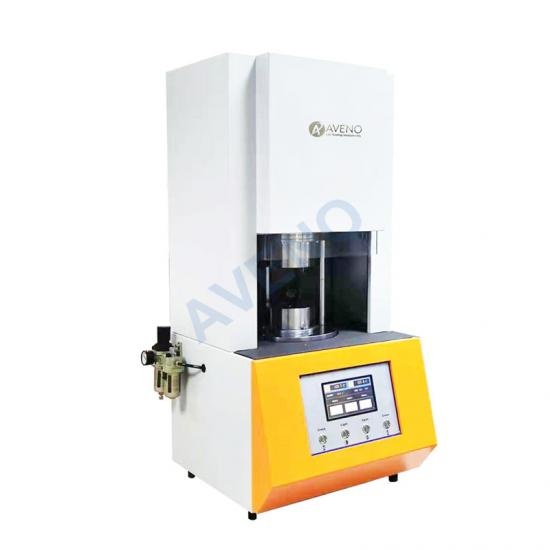

Multi-Function Rubber Rheometer is a machine with temperature measurement system using platinum resistance temperature sensors can automatically track changes in the power grid and ambient temperature, and automatically modify PID parameters to achieve fast and precise temperature control.
model :
AF74Brand:
AVENOorigin:
ChinaLead Time：
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
GB/T 16584 ASTM D5289 ISO6502 DIN 53529AF74- Multi-Function Rubber Rheometer
Application of Multi-Function Rubber Rheometer
Multi-Function Rubber Rheometer is a machine with temperature measurement system using platinum resistance temperature sensors can automatically track changes in the power grid and ambient temperature, and automatically modify PID parameters to achieve fast and precise temperature control. The data acquisition system and the electromechanical chain complete the automatic detection of the torque signal of the rubber vulcanization process and automatically display the temperature and set value in real time. After the vulcanization is completed, automatic processing, automatic calculation, printing vulcanization curve and process parameters. Show curing time and curing torque.
Standards of Multi-Function Rubber Rheometer
GB/T 16584 ASTM D5289 ISO6502 DIN 53529
Feature of Multi-Function Rubber Rheometer
Key Specification of Multi-Function Rubber Rheometer
|
Model |
AF74 Multi-Function Rubber Rheometer |
|
Control mode |
Touch screen and computer control |
|
Temperature range |
RT-200℃，±0.3℃, computer control |
|
Temperature minimum display |
0.01℃ |
|
Heating rate |
30℃ to 180℃ ＜ 8min |
|
Torque range |
0--20NM |
|
Torque minimum display |
0.001NM |
|
Pendulum angle |
±0.5℃, ±1℃, ±2℃, ±3℃ (Standard accessories ±1℃) |
|
Oscillation frequency |
100r/min(1.66HZ) |
|
Power supply |
AC220V, 50/60HZ |
