model :
AF32Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

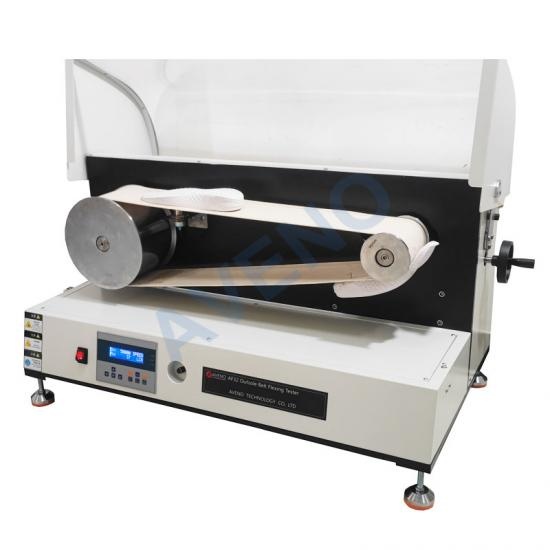

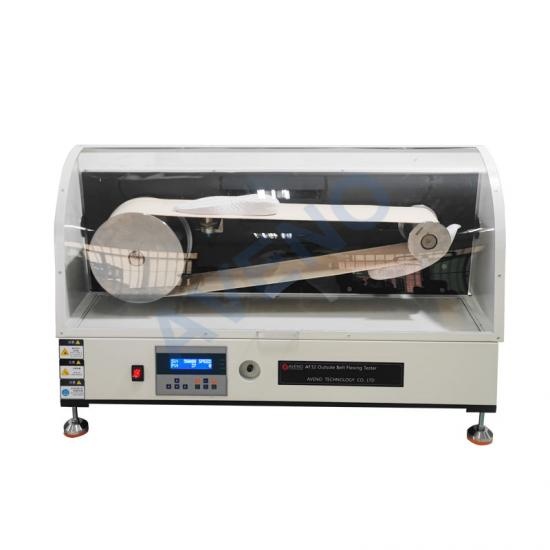

ASTM D395, SATRA TM64AF32-Outsole Belt Flexing Tester
Application Of Outsole Belt Flexing Tester

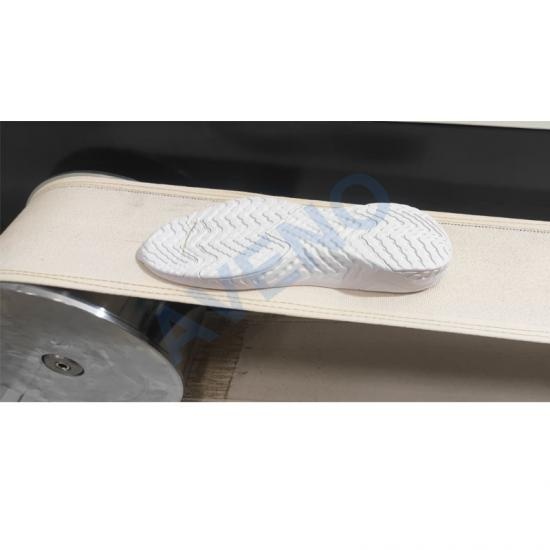

Outsole Belt Flexing Tester is used to determine the flexing resistance of Shoe’s outsole. Paste or sew the sample outsole on canvas belt surface, machine reel drive the belt, simulated people walking with shoes. After flexing a certain number of times, check the damage and fracture degree of the sample.
Standards Of Outsole Belt Flexing Tester
SATRA TM133
Key Specification Of Outsole Belt Flexing Tester
|
Model |
AF32 Outsole Belt Flexing Tester |
|
Test position |
Can test 6pc of sole at the same time |
|
Cavas belt size |
Length 1930±50mm, width 140±5mm |
|
Cavas belt speed |
90±8 cycles/min |
|
Driven roller diameter |
Center diameter 225±5 mm, Ends diameter 170±20 mm |
|
Driven roller speed |
247±20 cycles/min |
|
Free roller diameter |
A.Center diameter 60±0.5 mm, Ends diameter 57±1 mm B.Center diameter 90±0.5 mm, Ends diameter 87±1 mm C.Center diameter 120±0.5 mm, Ends diameter 117±1 mm |
|
Counter |
LCD, 0~999，999 |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
1290×750×700 mm |
|
Weight |
170kg |
