model :
AK20Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

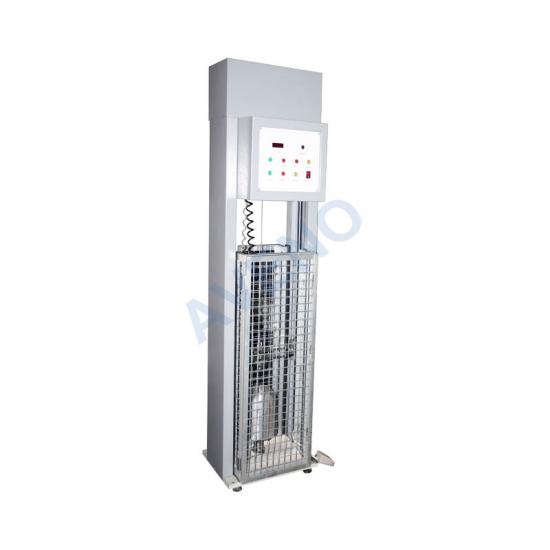

GB/T2812-2006 EN397AK20-Helmet Impact Tester
Application Of Helmet Impact Tester
Helmet Impact Tester is specifically used to test the impact resistance of the helmet. Computer control whole test process, automatically record test results and print test data. The machine has the characteristics of safety, reliability, high measurement precision and the like.
Principle Of Helmet Impact Tester
A wooden human head model with a helmet is set on a high-sensitivity force sensor, then a steel hammer with a mass of 5kg is used to impact from 1m height, and the force value will be record to judge the impact absorption performance of the helmet.
Standards Of Helmet Impact Tester
GB/T2812-2006 EN397
Key Specification Of Helmet Impact Tester
|
Model |
AK20-Helmet Impact Tester |
|
Impact hammer weight |
5KG |
|
Anti-piercing knife weight |
3KG |
|
Impact head dimension |
ф96mm, half ball sharp |
|
Wooden head mold |
No.2 (1pc), NO.5 (1pc) Compliance with GB 2811 Appendix a |
|
Impact method |
guide fall down |
|
Force range |
0–60KN |
|
Frequency response range |
5-1000Hz |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
40*40*140cm |
|
Weight |
300kg |
Specially detect the anti-static performance of helmets.
1. Test Bench: The output voltage 0V-5000V,50Hz; 2. AC milliampere meter：0mA~10mA; 3. High voltage wiring bracket, electrode and wire mesh bracket 4. Test water tank
Helmet Lateral Stiffness Tester is mainly used for the determination of the lateral rigidity of the helmet. The test device consists of a frame, a force measuring mechanism, a displacement and timing mechanism, and a fixture.
Helmet Jaw Band Strength Tester is used to test the lateral pressure resistance and the strength of the Jaw Band of the safety helmet.
Helmet Flammability Tester is used for the test of fire-retardant performance of helmets. It has high automation degree and convenient operation. It is widely used in helmet manufacturing enterprises and major quality inspection units. And construction engineering inspection station.
Fix the sensor at the bottom of the head mold and test the impact force by hitting the head mold with the impact hammer.
