Resilience Elasticity Tester is used to test the elastic resilience of elastic and foamed materials.
model :
AF54Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

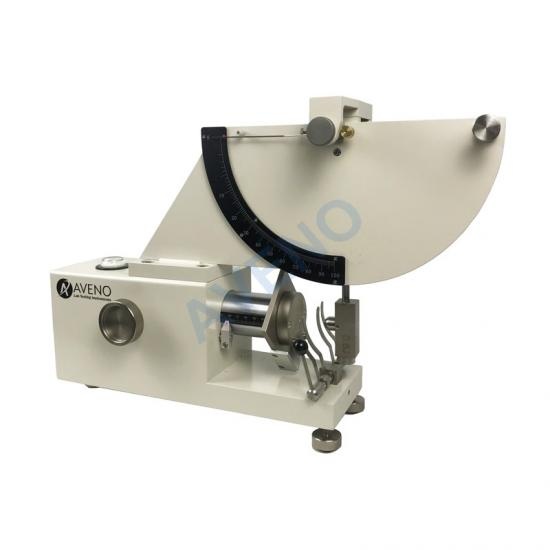

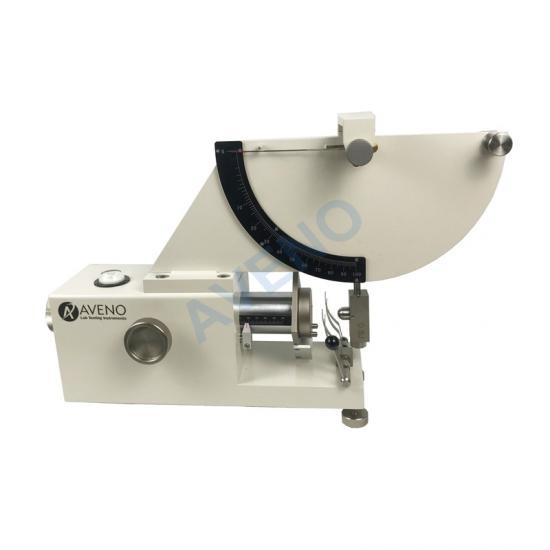

DIN 53512-2000，ADIDAS CE-12, DIN53573, ISO 4662, GB/T 1681AF54-Resilience Elasticity Tester
Application Of Resilience Elasticity Tester
Resilience Elasticity Tester is used to test the elastic resilience of elastic and foamed materials.
Principle Of Resilience Elasticity Tester
The elastic resilience is the deformation specimen ratio of output energy to input energy when recovering quickly and fully.
Feature Of Resilience Elasticity Tester
Standards Of Resilience Elasticity Tester
DIN 53512-2000，ADIDAS CE-12, DIN53573, ISO 4662, GB/T 1681
Key Specification Of Resilience Elasticity Tester
|
Model |
AF54 Resilience Elasticity Tester |
|
Impact energy |
0.5J, 0.2J |
|
Display range |
0~100% |
|
Minimum mark scale |
1% |
|
Impact angle |
90° |
|
Pendulum length |
200mm |
|
Impact speed |
1.40 ~ 2.04 m/sec |
|
Specimen thickness adjustable range |
0 ~ 60 mm |
|
Moving axis min.scale |
1mm |
|
Device to test elastic material |
Impact energy: 0.5J Sphere Dia. 15mm |
|
Device to test foamed material |
Impact energy: 0.2J Shape A spherome Dia. 30mm Shape B cylinder Dia. 40mm, round top radius 40mm |
|
Dimension |
62×12×33 cm |
|
Weight |
38 kg |
Accessories Of Resilience Elasticity Tester
|
Standard Accessories |
Sharp A (0.2J) |
1pc |
|
Sharp B (0.2J) |
1pc |
|
|
Striker (0.5J) |
1pc |
