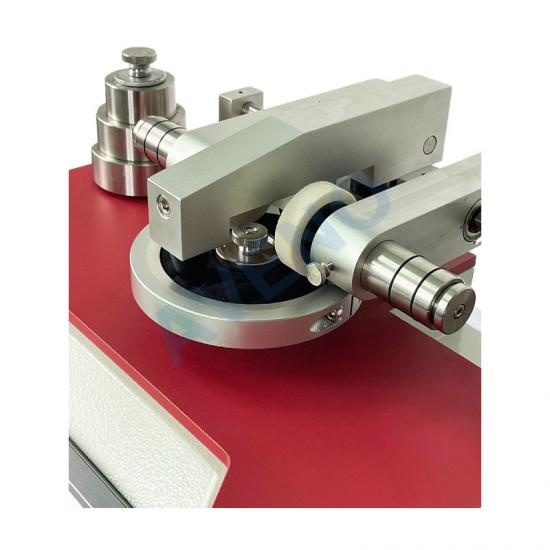

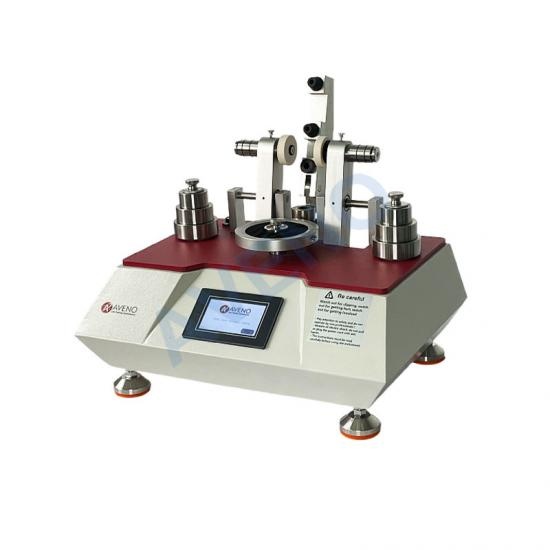

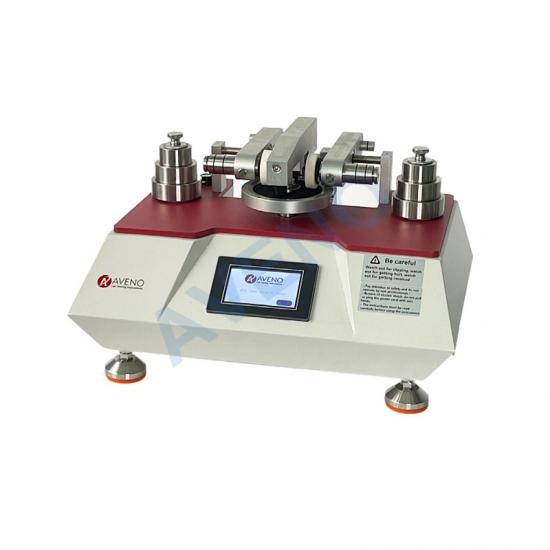

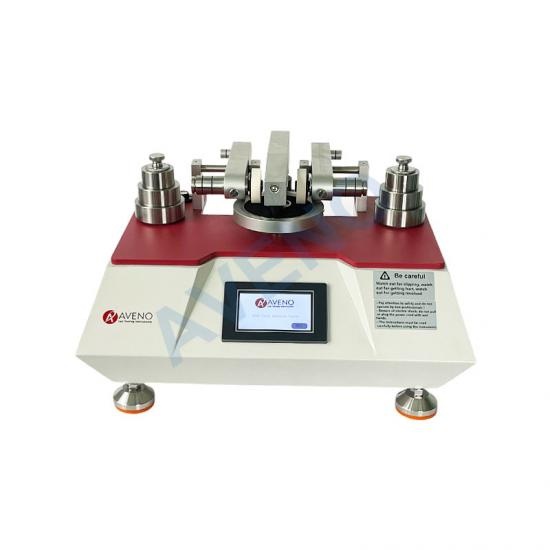

AF46B Taber Abrasion Tester is used for abrasion resistance test of cloth, paper, paint, plywood, leather, natural rubber, etc.
model :
AF46BBrand:
AVENOorigin:
ChinaLead Time：
3-7 daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
ASTM D1044, ASTM D3884, ASTM D1044, ASTM D 4060, DIN52347, DIN53109, DIN 53754, DIN 53799, ISO 5470-1, ISO 9352, TAPPI T476, JIS K7204, JIS A1453, JIS K6902, JIS K6964, JIS L1096AF46B-Taber Abrasion Tester
Application Of Taber Abrasion Tester
AF46B Taber Abrasion Tester is used for abrasion resistance test of cloth, paper, paint, plywood, leather, natural rubber, etc. Machine with touch screen control, easy to operate, and with vacuum cleaner connection port can connect vacuum cleaner.
Test Principle Of Taber Abrasion Tester
Use grinding wheel and apply a certain weight on it and grinding. After the specified number of revolutions, take out the sample and observe its condition or compare the weight difference and record.
Standards Of Taber Abrasion Tester
ASTM D1044, ASTM D3884, ASTM D1044, ASTM D 4060, DIN52347, DIN53109, DIN 53754, DIN 53799, ISO 5470-1, ISO 9352, TAPPI T476, JIS K7204, JIS A1453, JIS K6902, JIS K6964, JIS L1096
Key Specification Of Taber Abrasion Tester
|
Model |
AF46B Taber Abrasion Tester |
|
Test position |
1position |
|
Control mode |
Touch screen control |
|
Rotation speed |
40- 80r／min, can be set |
|
Load |
250g, 750g, 1000g |
|
Counter |
1～999999, can be set |
|
Wheels model |
CS-5, CS-10F, CS-17, CS-32, CS-33, CS-35, H-10, H-18, H-22, H-38 (optional) |
|
Dimension |
38*37*36cm |
|
Weight |
30kg |
|
Power |
AC220V, 50/60HZ |
Accessories Of Taber Abrasion Tester
|
Standard Accessories |
250g weight |
1set |
|
750g weight |
1set |
|
|
Sample sticker |
5pcs |
|
|
Power line |
1pc |
|
|
Option Accessories |
Different size of wheels |
|
|
Vacuum cleaner |
|
