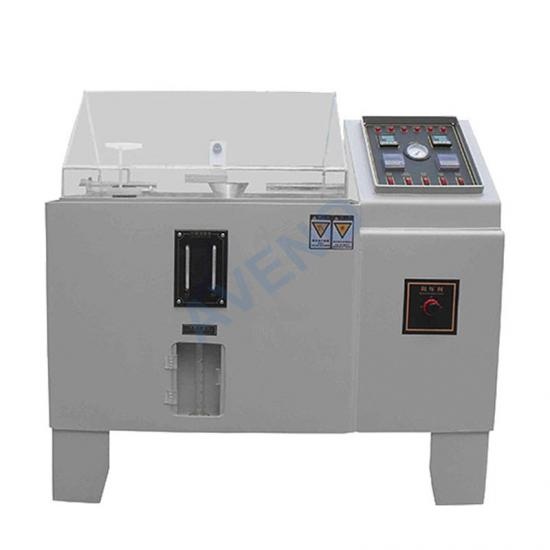

AE02-Salt Spray Tester
Application Of Salt
Spray Tester
Salt Spray Tester is used to do accelerated
corrosion test that produces a corrosive attack to the coated samples in order
to predict its suitability in use as a protective finish.
Standards Of Salt Spray Tester
CNS3627,3885,4159,7669,8886,JIS D-0201,H-8502,H-8610,K-5400, Z-2371,ISO 3768,3769,3770,ASTM B-117,B-268,GB-T2423,GJB 150.
Key Specification Of Salt Spray Tester
Test chamber capacity (L) |
108L |
270L |
480L |
Test chamber dimension L×W×D(cm) |
60×45×40 |
90×60×50 |
120×80×50 |
Outside dimension L×W×D(cm) |
110×66×105 |
138×88×110 |
190×130×140 |
Brine tank |
15L |
25L |
25L |
Temperature of test chamber |
NSS.ACSS 35℃±1℃/CASS 50℃±1℃ |
||
Temperature of pressure barrel |
NSS ACSS 47℃±1℃/ CASS 63℃±1℃ |
||
Compressed Air Pressure |
1.00±0.01kgf/cm2 |
||
Spray quantity |
1.0-2.0ml/80cm2.h |
||
Test chamber relative humidity |
Above 85% |
||
PH |
6.5~7.2, 3.0~3.2 |
||
Spray method |
Continuous and intermittent method |
||
Temperature range |
1.Test chamber: 35℃, pressure barrel 50℃ can be set 2.Test chamber: 47℃, pressure barrel 63℃ can be set Temperature accuracy: ±1℃ |
Standard Accessories |
Counting cup |
1pc |
English manual |
1pc |
