Safety Glove Cutting Tester(Blade Cut Resistance Tester) is used to check the protective capability for the protective zone of the safety glove against cutting.
model :
AF21Brand:
AVENOorigin:
ChinaLead Time:
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:

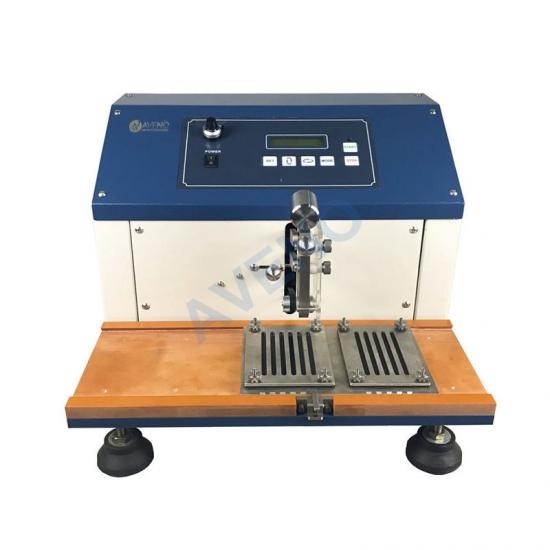

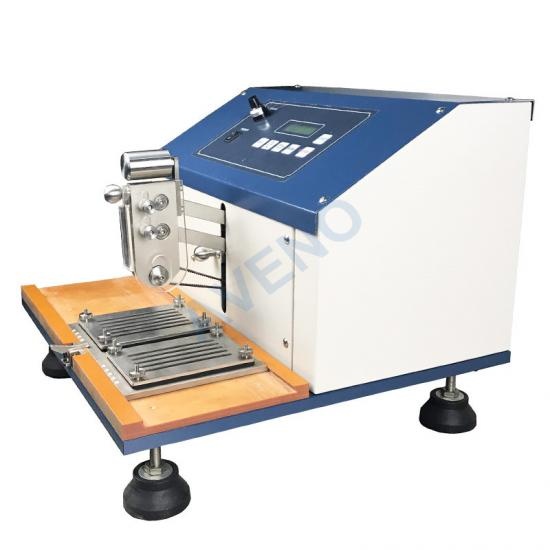

ISO20344 6.14, EN388.6.2AF21 Safety Glove Cutting Tester (Blade Cut Resistance Tester)
Application Of Safety Glove Cutting Tester (Blade Cut Resistance Tester)
Safety Glove Cutting Tester is used to check the protective capability for the protective zone of the safety glove against cutting.
Test principle Of Safety Glove Cutting Tester (Blade Cut Resistance Tester)

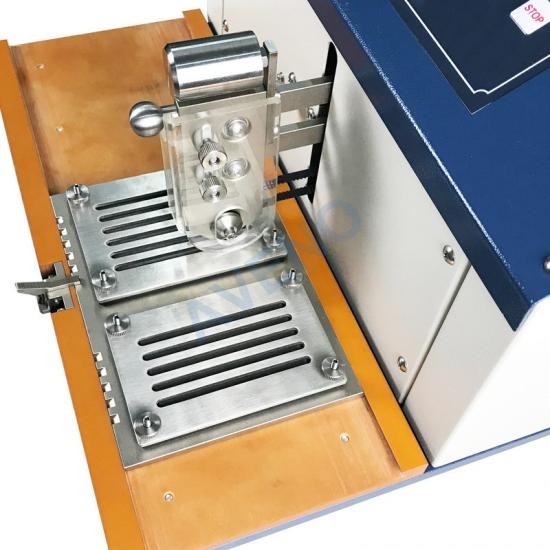

Put the sample on the special test set, cutting the sample with a rotating circular blade, the blade reciprocate under a certain load and times, automatic counting and stop after test. By contrast the difference of the sample between before test and after test, get the test results.
Standards Of Safety Glove Cutting Tester (Blade Cut Resistance Tester)
ISO20344 6.14, EN388.6.2
Key Specification Of Safety Glove Cutting Tester (Blade Cut Resistance Tester)
Model
AF21 Safety Glove Cutting Tester
Load weight
5N±0.05N
cutting blade
Φ45±0.5 mm, thickness 3mm
Cutting angle
30°-50°
Cutting stroke
50mm
Cutting speed
10cm/s

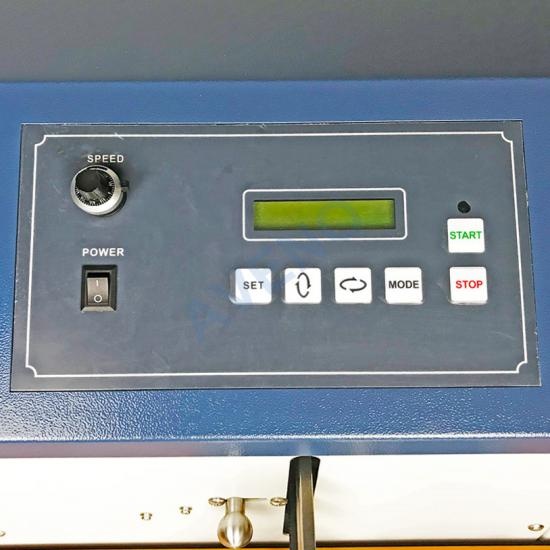

Counter
LCD, 1~99999.9
Power supply
AC220V, 50/60HZ
Dimension
550×350×350
Weight
80kg
