model :
AG08BBrand:
AVENOorigin:
ChinaLead Time：
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
CNS -1083 BS 3084 QB/T2171, 2172, 2173.AG08B- Zipper Fatigue Tester
Application Of Zipper Fatigue Tester

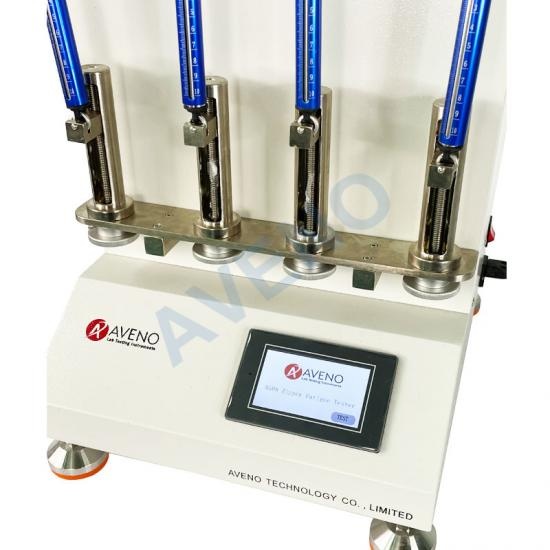

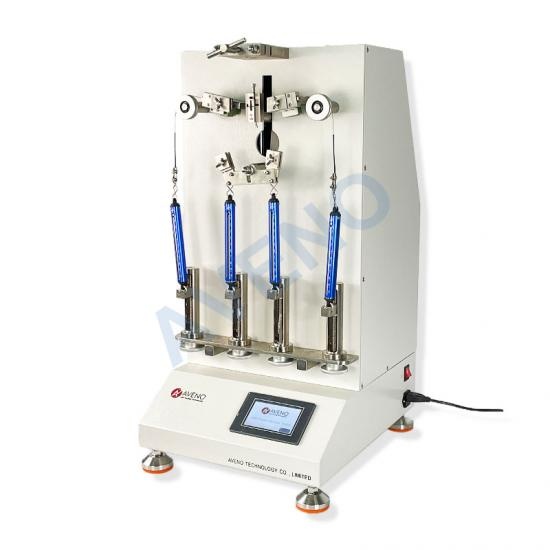

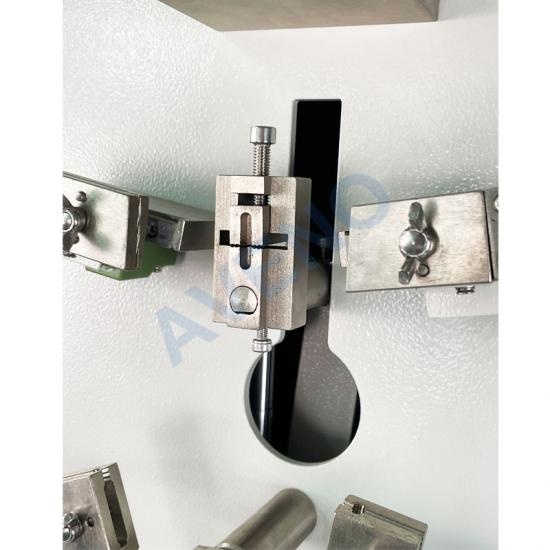

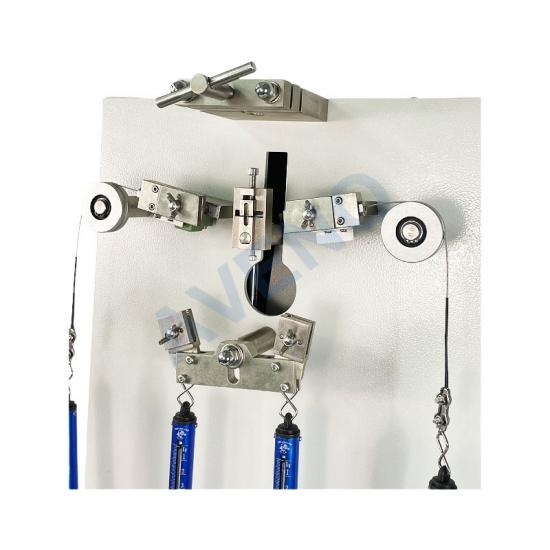

AG08B Zipper Fatigue Tester is used to determine the life of metal or plastic zipper under condition of specified load and specified times of stretching cycle, test for zipper in a tension action of lateral and longitudinal, it could be tested its bearing ability in reciprocating motion for a regulation time.
Feature Of Zipper Fatigue Tester
2. The instrument has left and right release detection to detect zipper damage and automatically stop the experiment.
3. Users can set the desired working mode according to their needs, and the instrument has multiple options:
Counting methods: frequency counting, time counting;
Counting mode: add count, subtract count;
4. The instrument can be loaded with weights or spring scales according to user needs.
Standards Of Zipper Fatigue Tester
CNS -1083 BS 3084 QB/T2171, 2172, 2173.
Key Specification Of Zipper Fatigue Tester
|
Model |
AG08B Zipper Fatigue Tester |
|
Control mode |
Touch screen control |
|
Reciprocating speed |
30cycles/min |
|
Gripping device width |
25mm |
|
Sample angle during test |
Open 60°, Close 30° |
|
Reciprocating stroke |
82.5mm |
|
Reciprocating speed |
30 cycles/min |
|
Reciprocating travel |
75mm |
|
Power Supply |
AC220V, 50/60HZ |
|
Dimension |
45 cm ×35 cm ×80cm |
|
Weight |
60 kg |
Accessories Of Zipper Fatigue Tester
|
Standard Accessories |
Load weight |
9N*2pcs,8N*2pcs,5N,4N*2pcs,3*2pcs, 6N*4pcs |
|
Inner hexagon wrench |
1pc |
|
|
Power line |
1pc |
Zipper Fatigue Tester is used to determine the life of metal or plastic zipper under condition of specified load and specified times of stretching cycle.
