Zipper Rotation Testing Machine AG09
Zipper Rotation Testing Machine is used to determine the torsion resistance of zippers, offer 3 test methods: torsion breaking, angle test and load test.
+8615280858852

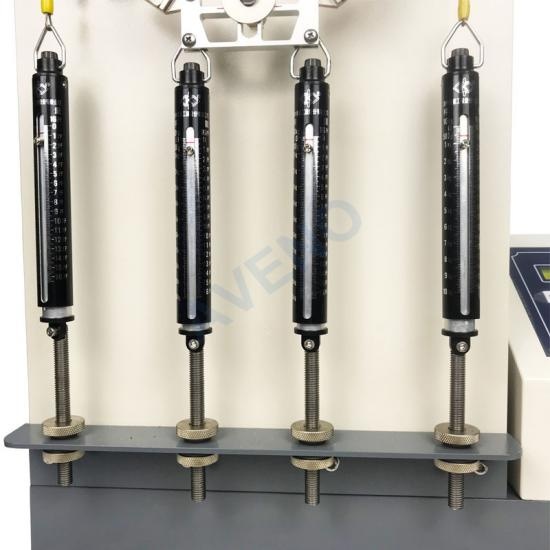

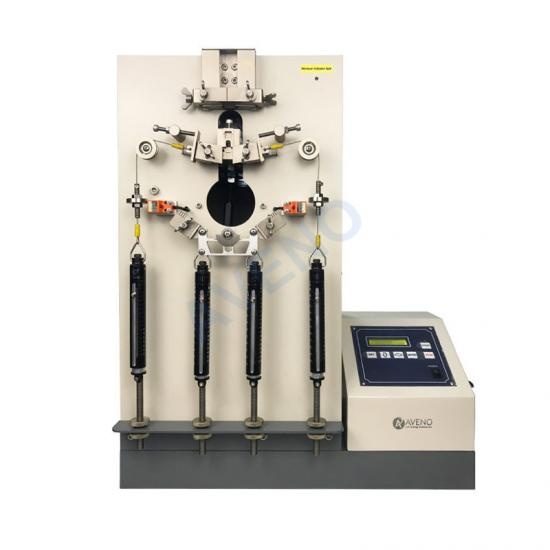

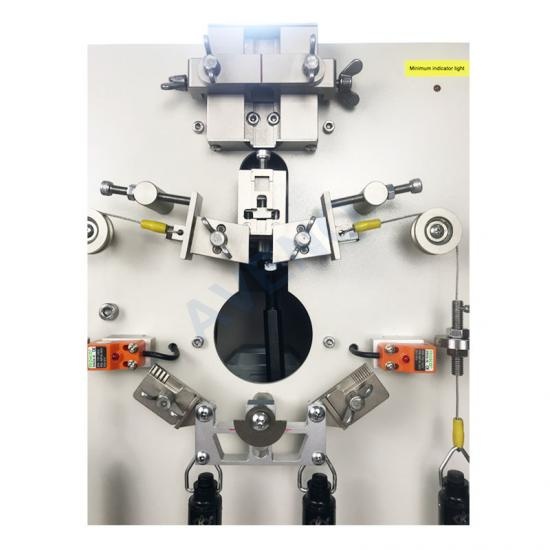

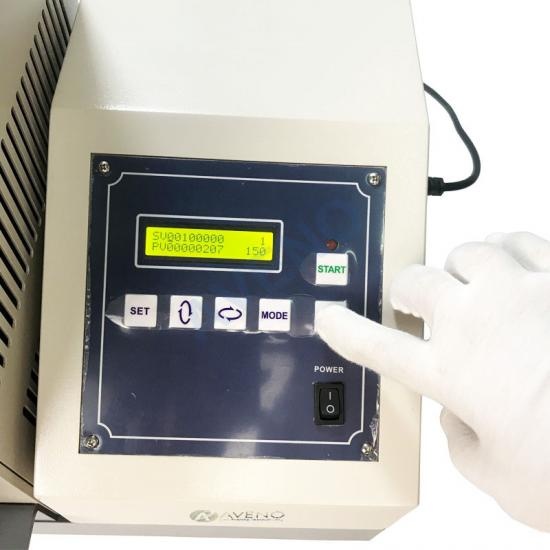

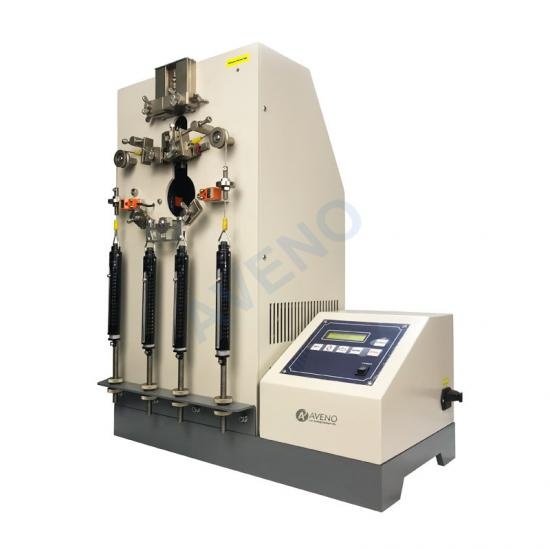

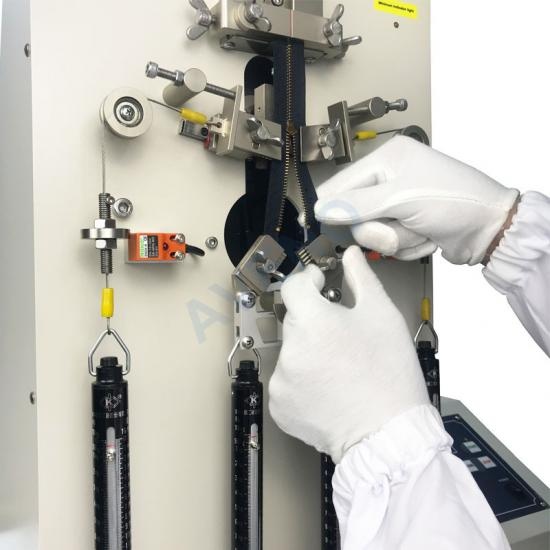

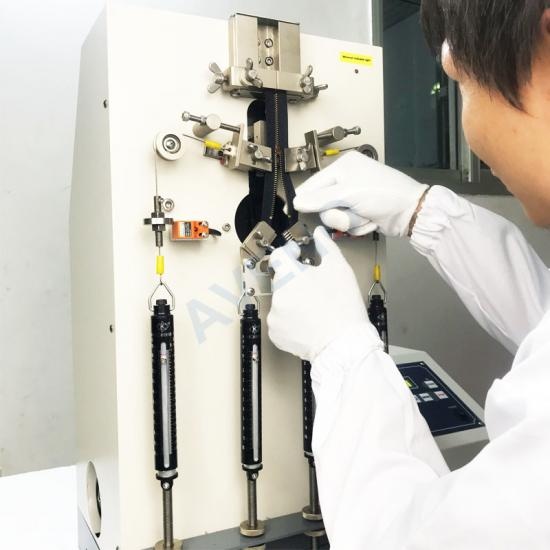

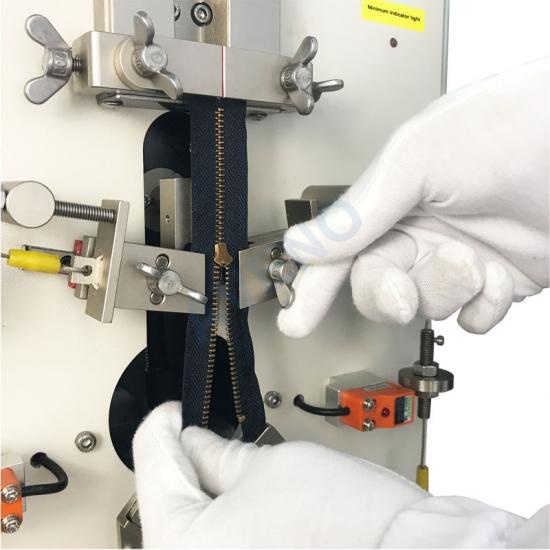

Zipper Fatigue Tester is used to determine the life of metal or plastic zipper under condition of specified load and specified times of stretching cycle.
model :
AG08Brand:
AVENOorigin:
ChinaLead Time:
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:
CNS -1083 BS 3084 QB/T2171, 2172, 2173.AG08- Zipper Fatigue Tester
Application Of Zipper Fatigue Tester
Zipper Fatigue Tester is used to determine the life of metal or plastic zipper under condition of specified load and specified times of stretching cycle, test for zipper in a tension action of lateral and longitudinal, it could be test its bearing ability in reciprocating motion for a regulation time.
Standards Of Zipper Fatigue Tester
CNS -1083 BS 3084 QB/T2171, 2172, 2173.
Key Specification Of Zipper Fatigue Tester
Model |
AG08 Zipper Fatigue Tester |
Reciprocating speed |
30cycles/min |
Gripping device width |
25mm |
Sample angle during test |
Open 60°, Close 30° |
Reciprocating stroke |
82.5mm |
Reciprocating speed |
30 cycles/min |
Reciprocating travel |
75mm |
Power Supply |
AC220V, 50/60HZ |
Dimension |
66 cm ×32.5 cm ×57.3 cm |
Weight |
65 kg |
Accessories Of Zipper Fatigue Tester
Standard Accessories
|
Angle gauge
|
2pc (60°and 30°)
|
Position pieces
|
8pcs
|
|
Inner hexagon wrench
|
1pc
|
|
Power line
|
1pc
|
