Zipper Rotation Testing Machine is used to determine the torsion resistance of zippers, offer 3 test methods: torsion breaking, angle test and load test.
model :
AG09Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
ASTM D2061 16CFR1500.51 52 53.AG09- Zipper Rotation Testing Machine
Application Of Zipper Rotation Testing Machine
Zipper Rotation Testing Machine is used to determine the torsion resistance of zippers, offer 3 test methods: torsion breaking, angle test and load test.
Feature Of Zipper Rotation Testing Machine
1. Three test method: torsion breaking, angle test and load test
2. Touch screen display and with humanization design, low noise, beautiful look and easy to operate.
3. High precision torque sensor with small error, automatic torsion tracking and peak holding function.
4. Bidirectional torque measurement, can arbitrary angle rotation.
5. Unit can be freely switched from CN.m and N.m.
Standards Of Zipper Rotation Testing Machine
ASTM D2061 16CFR1500.51 52 53.
Key Specification Of Zipper Rotation Testing Machine
Model

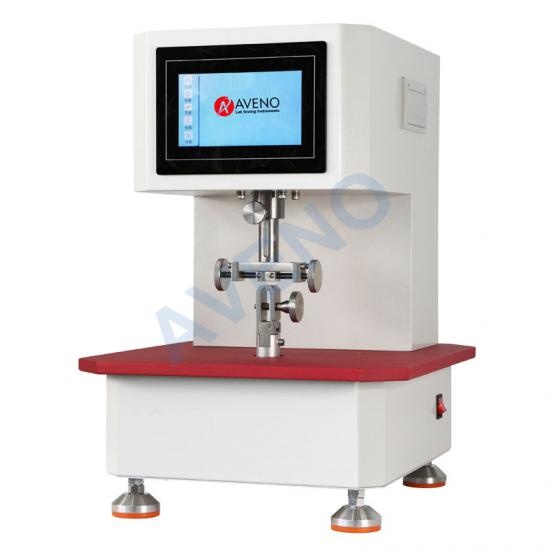

AG09 Zipper Rotation Testing Machine
Torsion range
0-10.0N.M (1000cN.m),±0.1cN.m
Torsion angle
Any angle, can be set
Torsion angle accuracy
±0.1°
Torsion speed
Can be set
Power supply
AC220V, 50/60HZ
Dimension
460*410*550mm
Weight
50kg
Accessories Of Zipper Rotation Testing Machine
Standard Accessories

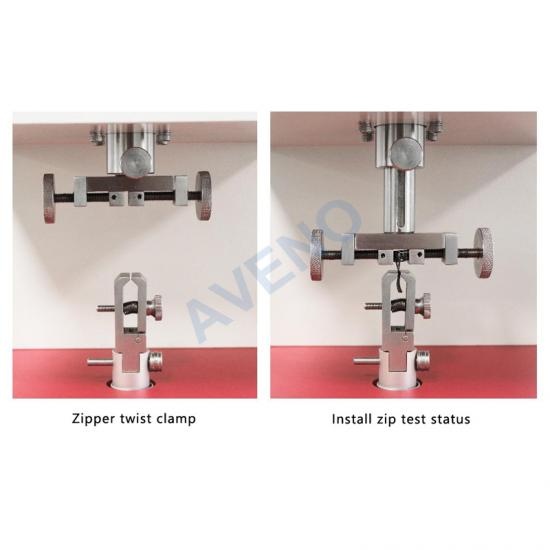

Fixture
1set
Power line
1pc
