Fabric Water-vapor Transmission Tester is used for detecting the water vapor transmission performance of textiles and textile composites (especially sportswear fabrics).
model :
AG51BBrand:
AVENOorigin:
ChinaLead Time:
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
BS 7209, BS3424AG51B-Fabric Water-vapor Transmission Tester

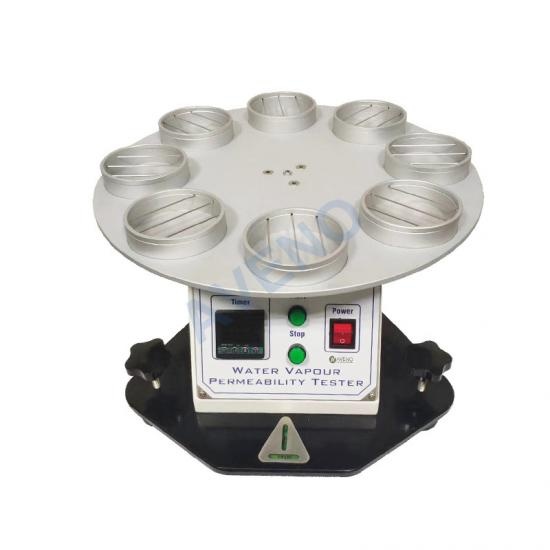

Application Of Fabric Water-vapor Transmission Tester
Fabric Water-vapor Transmission Tester is used for detecting the water vapor transmission performance of textiles and textile composites (especially sportswear fabrics).
Principle Of Fabric Water-vapor Transmission Tester
In a constant temperature environment, the sample is covered on a sample dish containing water. After a certain period of time, water vapor is allowed to pass through the fixed sample area, and the weight of the permeated water vapor is weighed to calculate the water vapor permeability, excess rate and water vapor transmission index.
Standards Of Fabric Water-vapor Transmission Tester
BS 7209, BS 3424
Key Specification Of Fabric Water-vapor Transmission Tester
Model
AG51B-Fabric Water-vapor Transmission Tester
Sample
3 pcs, φ96mm
Test
vessel internal dimensions
83mm in
diameter and 18.5mm in depth
Test dish assembly weight
120g~150g/group
(with water)
Test dish filled with water
46cm^3
Distance
between Water surface and sample
10±1mm
Turntable
Aluminum, Test
tube placement center circle diameter P.C.D 305mm
Turntable speed
About
2r/min
Testing time
Can be set
Timer
LCD liquid
crystal display, 0~9999h can be set
Dimension
44x45x33cm
Weight
20Kg
power supply
220V,
50/60HZ
