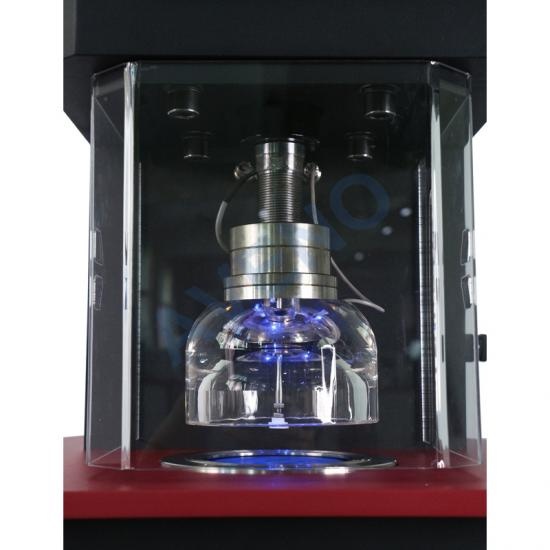

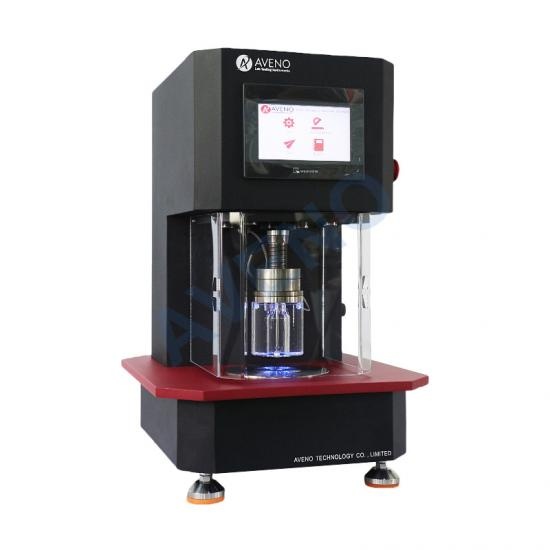

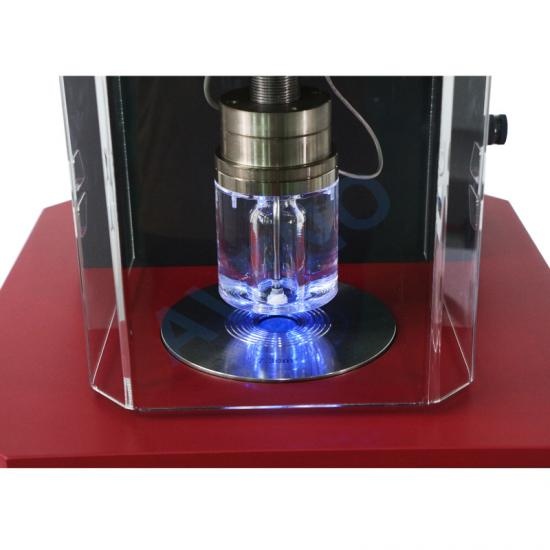

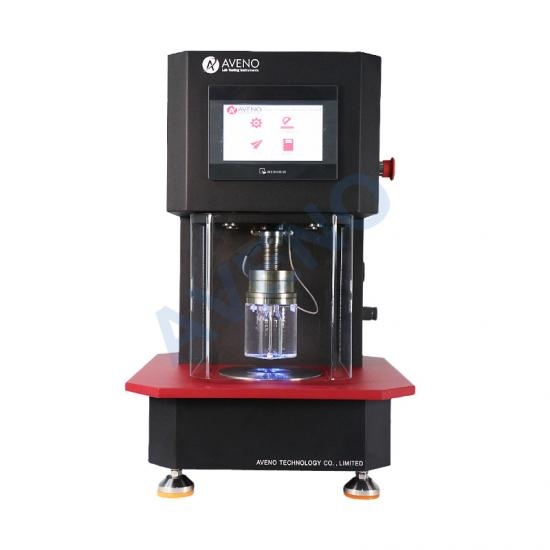

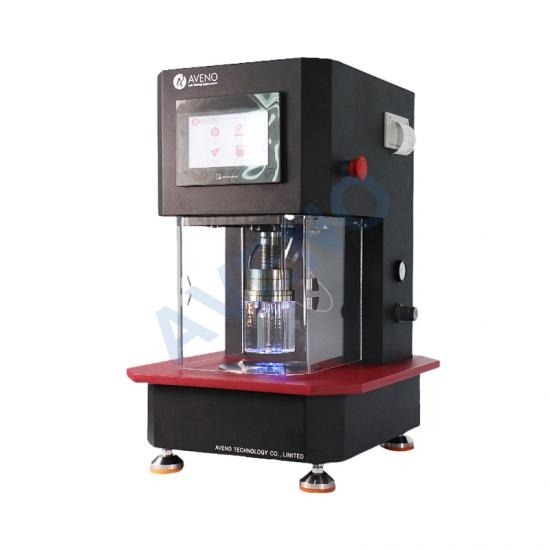

Pneumatic Bursting Strength Tester is used to determine the expansion force and divergence rate of fabric, woven, knitted fabrics, non-woven, paper and board.
model :
AG10CBrand:
AVENOorigin:
ChinaLead Time：
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
ASTM D3786-06, ISO 2758/13938-1, BS 3424/3137, BS 4768, AS2001.2.4, GB/T 7742, IWSTM 29, EDA NA 80.4-02/80.3-99, NEXT 22 2206, FZ/T60019, JIS L 1018.6.17, BS-2922, FZ/T 60019, FZ/T 01030, JIS L 1018.6.17.AG10C-Pneumatic Bursting Strength Tester
Application Of Pneumatic Bursting Strength Tester
Pneumatic Bursting Strength Tester is used to determine the expansion force and divergence rate of fabric, woven, knitted fabrics, non-woven, paper and board.
Standards Of Pneumatic Bursting Strength Tester
ASTM D3786-06, ISO 2758/13938-1, BS 3424/3137, BS 4768, AS2001.2.4, GB/T 7742, IWSTM 29, EDA NA 80.4-02/80.3-99, NEXT 22 2206, FZ/T60019, JIS L 1018.6.17, BS-2922, FZ/T 60019, FZ/T 01030, JIS L 1018.6.17.
Key Specification Of Pneumatic Bursting Strength Tester
|
Model |
AG10C Pneumatic Bursting Strength Tester |
|
Test range |
1.2Mpa |
|
Min division value |
0.1Mpa |
|
Test area |
Standard:7.3cm² (φ30.5mm), 50cm² (φ35.7mm), Option: 10cm² (φ79.8mm), 100cm² (φ112.8mm), |
|
Expansion accuracy |
0.01mm |
|
Compressed air |
600-800Kpa |
|
Test method |
Constant pressure bursting Constant time bursting |
|
Pressure units |
Kpa, kg/cm², bar, lb/in² |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
550*450*700mm |
|
Weight |
125Kg |
Accessories Of Pneumatic Bursting Strength Tester
|
Standard Accessories |
7.3cm² test set (φ30.5mm) |
1set |
|
50cm2 test set (φ79.8mm) |
1set |
|
|
Elastic diaphragm |
8pcs |
|
|
Air compressor pipe |
1pc |
|
|
Wrench |
1pc |
|
|
Calibration plate |
1pc |
|
|
English operate software |
1set |
|
|
Cable to connect with computer |
1pc |
