Snap Button Pull Tester AG03
Snap Button Pull Tester used to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys.
+8615280858852
Rain Tester is used to determine the penetration resistance of fabrics or composites at different intensities of water impact.
model :
AG22-2Brand:
AVENOorigin:
ChinaLead Time:
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
AATCC 35, GB/T 23321, ISO 22958.

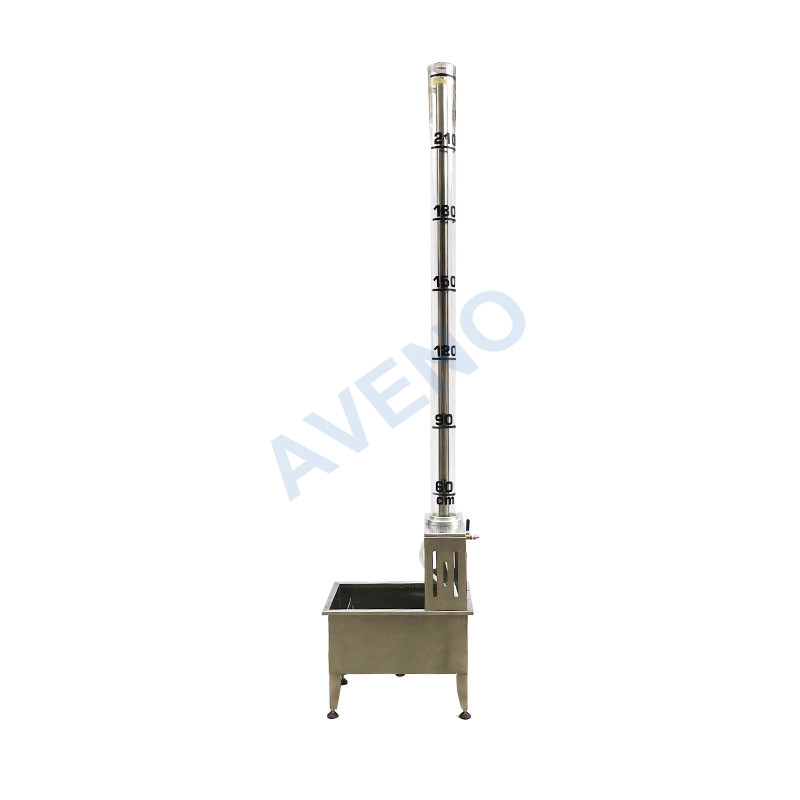

AG22-2-Rain Tester
Application Of Rain Tester
Rain Tester is used to determine the penetration resistance of fabrics or composites at different intensities of water impact.
Feature Of Rain Tester
Standards Of Rain Tester
AATCC 35, GB/T 23321, ISO 22958.
Key Specification Of Rain Tester
Model |
AG22-2 Rain Tester |
Control mode |
Touch screen control |
Sample size |
200×200mm |
Size of water - absorbing paper |
152×152mm |
Sample clip width |
152mm |
Sample clip distance |
165mm |
Sample clip size |
178×229mm |
Nozzle hole |
13pcs, Diameter: 0.99±0.013mm |
Nozzle to sample distance |
305mm |
Water pressure |
6kPa~24kPa, can be set |
Water temperature |
RT~50℃, can be set |
Power supply |
AC220V, 50/60HZ |
Dimension |
80*56*75cm |
Weight |
50kg |
