Schildknecht Flex Tester is used for testing the resistance to repeated bending failure of coated fabric (method B：Schildknecht method) to provide reference for improved fabric.
model :
AG42BBrand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

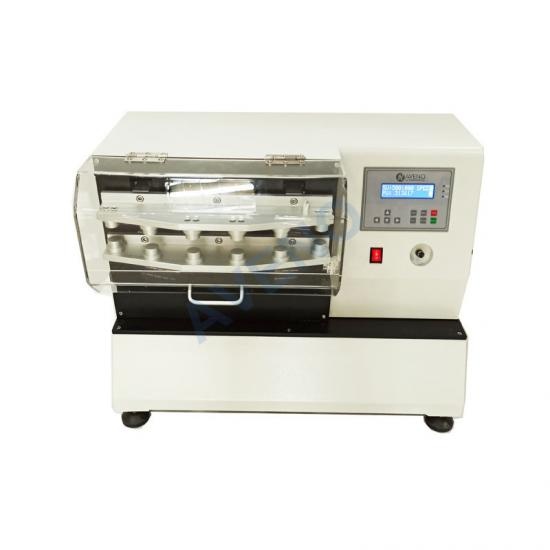

ISO7854，GB/T 12586-B，BS3424:9AG42B-Schildknecht Flex Tester
Application Of Schildknecht Flex Tester
Schildknecht Flex Tester is used for testing the resistance to repeated bending failure of coated fabric (method B：Schildknecht method) to provide reference for improved fabric.
Test Principle Of Schildknecht Flex Tester
A rectangular coated fabric strip is surrounded by two opposite cylindrical positions, thus making the specimen cylindrical. one of the cylinders moves back and forth along its axis. make the coated fabric tube alternately compressed and relaxed, thus causing folding on the specimen. this folding of the coated fabric cartridge continues until a predetermined number of cycles or the specimen failure of the specimen occurs.
Standards Of Schildknecht Flex Tester
ISO7854，GB/T 12586-B，BS3424:9
Key Specification Of Schildknecht Flex Tester
|
Model |
AG42B Schildknecht Flex Tester |
|
Test position |
6 group |
|
Rotation speed |
8.3Hz±0.4Hz(498±24r/min) |
|
Cylinder |
External diameter 25.4±0.1mm |
|
Test trajectory |
Arc R460mm |
|
Test stroke |
11.7±0.35mm |
|
Clamper |
Width 10±1mm, Inner distance 36±1mm |
|
Sample dimension |
50×105mm |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
40*55*35cm |
|
Weight |
35kg |
Accessories Of Schildknecht Flex Tester
|
Standard Accessories |
Cutting blade |
1pc |
|
Power line |
1pc |
