SPI 45 Degrees Flammability Tester suitable for testing the flame retardancy of polyethylene plastic film materials.
model :
AG68Brand:
AVENOorigin:
ChinaLead Time：
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
16 CFR Part 1611

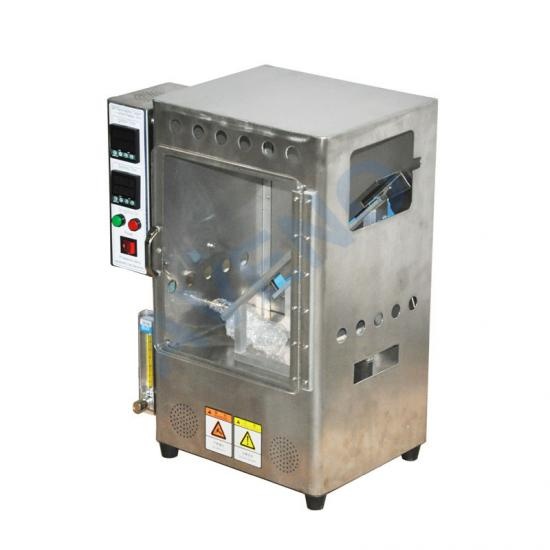

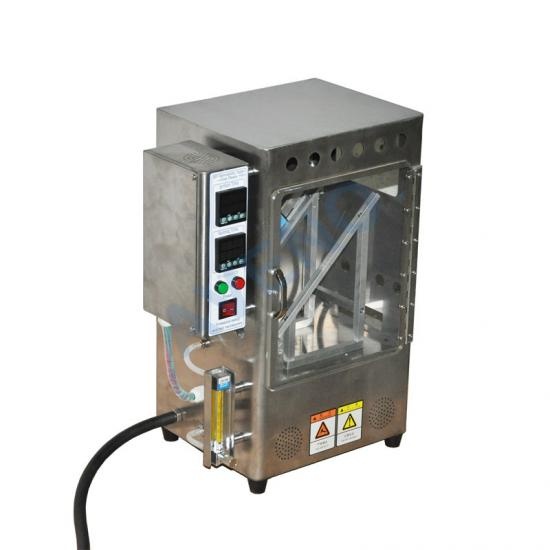

AG68-SPI 45 Degrees Flammability Tester
Application Of SPI 45 Degrees Flammability Tester
SPI 45 Degrees Flammability Tester suitables for testing the flame retardancy of polyethylene plastic film materials. Its detection range is mainly non-rigid and unsupported polyethylene plastic film materials, including transparent, translucent and opaque materials. Includes flat, convex, cast film or surface treated materials.
Principle Of SPI 45 Degrees Flammability Tester
Under the specified conditions, the specimen was clamped with a clamp with an angle of 45°oblique, and the ignition of the specimen. the burning time of the upper spacing of 6' on the slope of the sample 45 degrees was recorded to calculate the sample burning rate.
Standards Of SPI 45 Degrees Flammability Tester
16 CFR Part 1611
Key Specification Of SPI 45 Degrees Flammability Tester
|
Model |
AG68 SPI 45 Degrees Flammability Tester |
|
Test chamber dimension |
30cmX25cmX37cm Left and right with 5 blowholes, φ20mm Front with 6 blowholes, φ20mm |
|
Sample holder |
45° |
|
Mark line spacing |
6” |
|
Distance of fire nozzle and specimen surface |
9/16” |
|
Length of flame |
1/2” |
|
Sample dimension |
3”x9” |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
46x29x52cm |
|
Weight |
22kg |
Accessories Of SPI 45 Degrees Flammability Tester
|
Standard Accessories |
Sample holder |
1set |
|
Gas device |
1set |
|
|
White cotton threads |
1pc |
|
|
Power line |
1pc |
