Surface Flammability Tester is suitable for testing the burning performance of fluff or fur fabrics.
model :
AT36Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

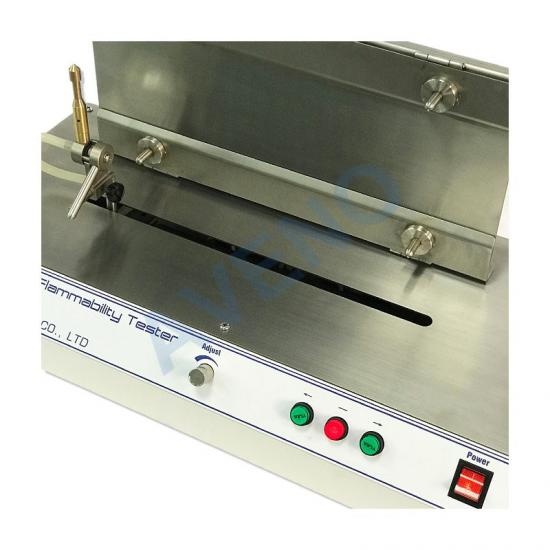

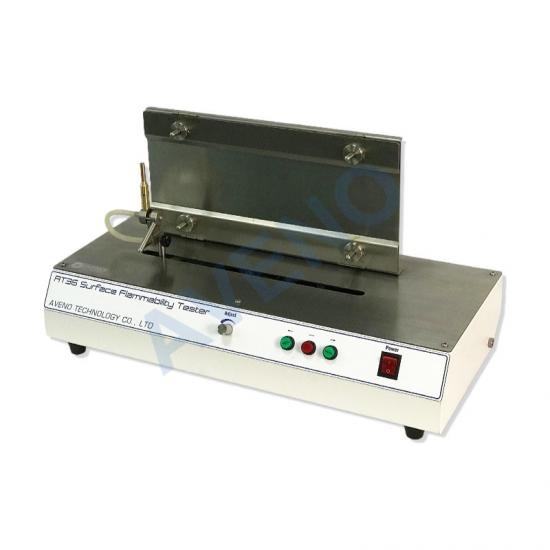

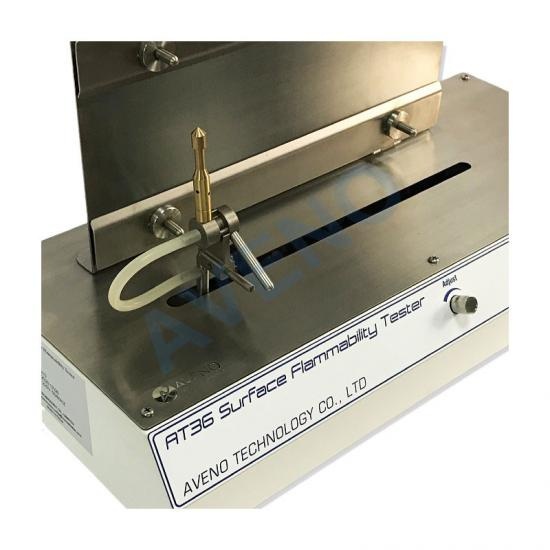

BS 4569, EN 71AT36-Surface Flammability Tester
Application Of Surface Flammability Tester
Surface Flammability Tester is suitable for testing the burning performance of fluff or fur fabrics.
Test Method Of Surface Flammability Tester
Using a prescribed flame to quickly move laterally from one end of the specimen surface to the other, the flame quickly spreads on the surface of the fabric, but the base fabric structure of the fabric does not burn, so as detecting if there's a surface flame on the specimen.
Standards Of Surface Flammability Tester
BS 4569, EN 71
Key Specification Of Surface Flammability Tester
|
Model |
AT36 Surface Flammability Tester |
|
Fixture length |
400mm |
|
Burner movement speed |
150±5mm/s |
|
Burner moving distance |
≥300mm |
|
Can test fabric plush height |
Max. 70mm |
|
Two clips spacing |
100mm |
|
Specimen specifications |
Length 200mm, width≥130mm |
|
Number of specimens |
2 pieces |
|

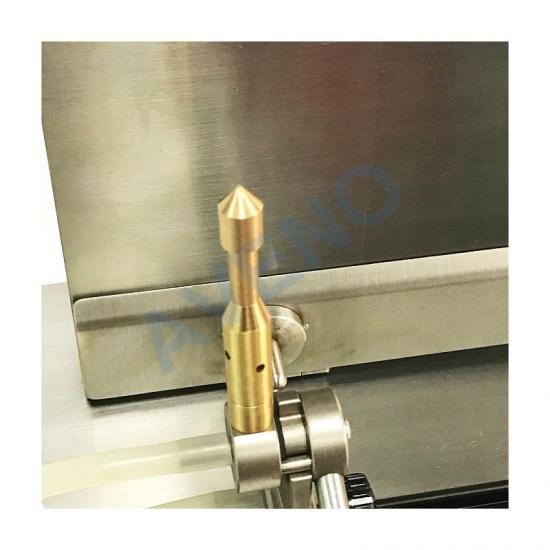

Distance between fire nozzle and specimen surface |
5mm |
|
Distance between fire nozzle center and lower clip |
15mm |
|
Combustion gas |
Butane gas |
|
Power Supply |
AC 220V 50/60HZ 3A |
|
Dimension |
60x41x32cm |
|
Weight (Kg) |
20kg |
Accessories Of Surface Flammability Tester
|
Standard Accessories |

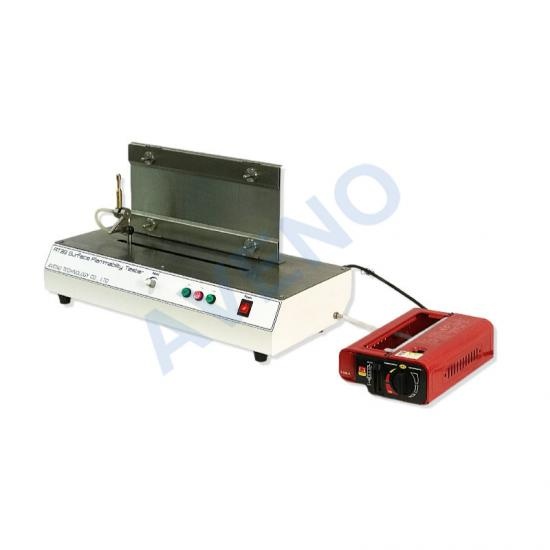

Gas supply device |
1pc |
|

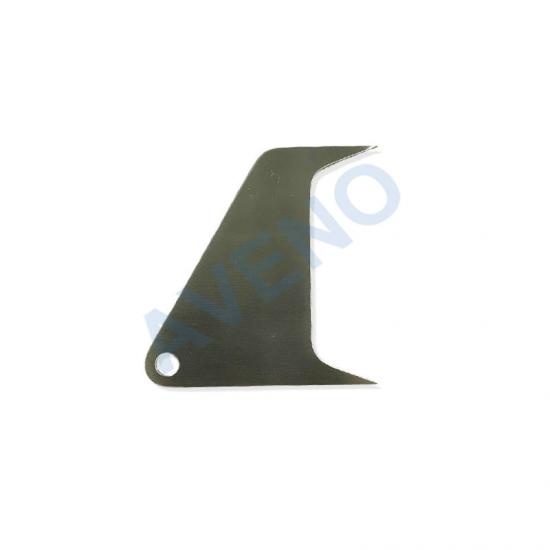

Flame measure gauge |
1pc |
|
|
Power line |
1pc |
|
|
English Operate manual |
1pc |
|
|
Operate video |
1pc |
|
|
Quality certification |
1pc |
