Vertical Flammability Tester is used to measuring the vertical flame spread of Flame retardant textiles, such as children’s sleepwear, fabrics and other textile materials or fabric resilient filling materials used in upholstered furniture.
model :
AG33Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:
GB/T 5455, 16CFR 1615/1616, CALIF TB117, ASTM D6413.

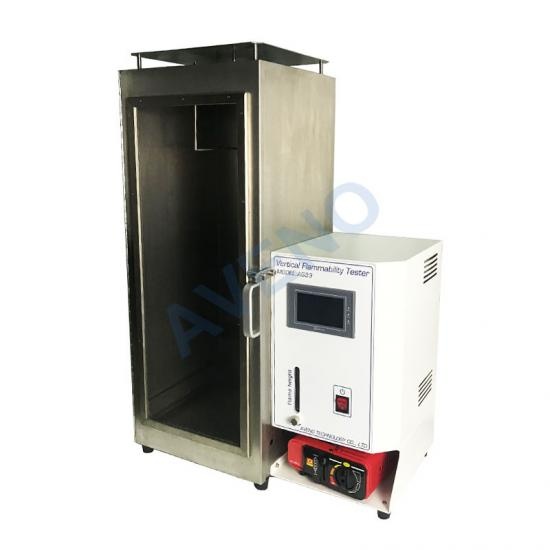

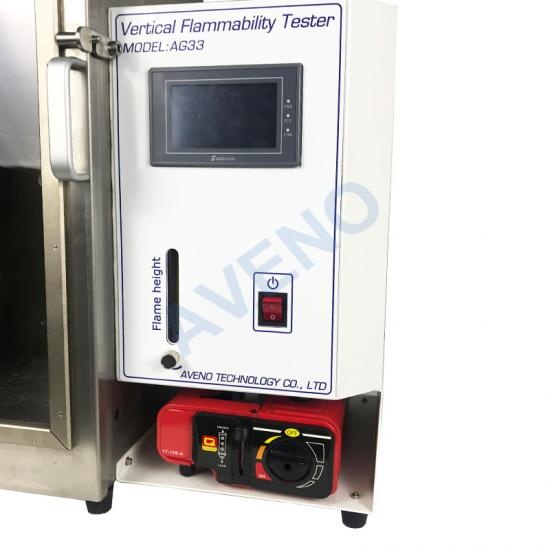

AG33- Vertical Flammability Tester
Application Of Vertical
Flammability Tester
Vertical Flammability Tester is used to measuring the vertical flame spread of Flame retardant textiles, such as children’s sleepwear, fabrics and other textile materials or fabric resilient filling materials used in upholstered furniture.
Feature Of Vertical Flammability Tester

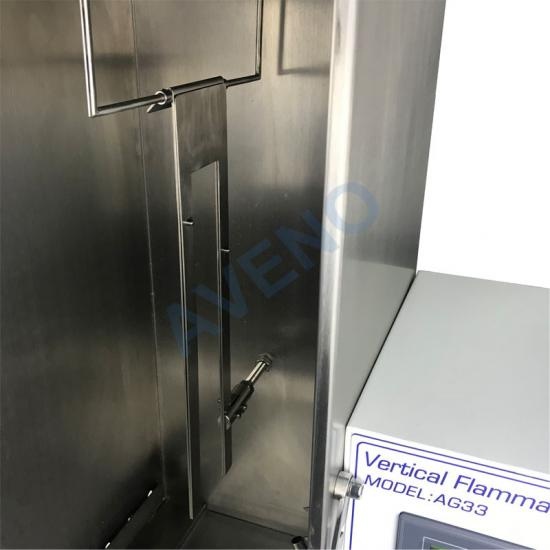

1. Test chamber and fixture use SUS304 stainless steel, with toughened glass transparent window, neat and convenient to observe the sample changes during testing.
2. Circulation ventilation system for long-term cooling of the instrument to ensure stable internal environment.

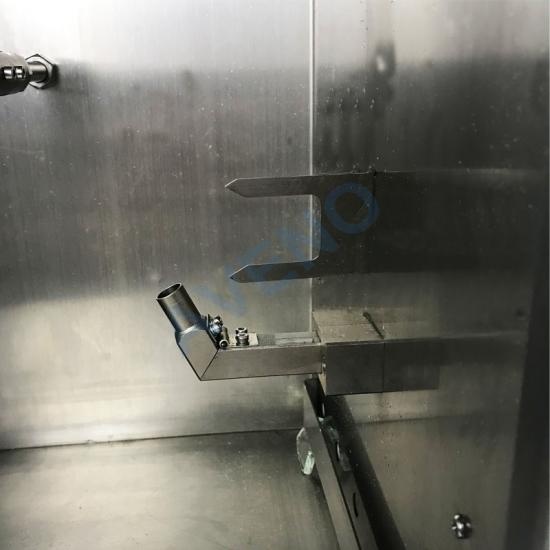

3. Motor drive rotary flame ignitor, stroke switch limit, operate smoothly and accurately.
Standards Of Vertical Flammability Tester
GB/T 5455, 16CFR 1615/1616, CALIF TB117, ASTM D6413.
Key Specification Of Vertical Flammability Tester
|
Model |
AG33-1 |
AG33-2 |
AG33-3 |
|
|
Standards |
16CFR 1615/1616 GB/T 5455 ASTM D6545 |
ASTM D6413 |
CALIF TB117 |
|
|
Sample holder dimension |
Inner frame |
356*51mm |
356*51mm |
Flexible foam holder |
|
Outside frame |
422*89*2mm |
442*76*12.5mm |
||
|
Nozzle angle |
65° |
90° |
90° |
|
|
Test frame height |
40mm |
38mm |
38mm |
|
|
Distance of sample end and burner top |
17mm |
19mm |
19mm |
|
|
Power supply |
AC220V/50/60HZ |
|||
|
Dimension |
60*40*85cm |
|||
|
Weight |
35kg |
|||
Accessories Of Vertical Flammability Tester
|
Standard Accessories |
Sample holder |
1pc |
|
Flame measure scale |
1pc |
|
|

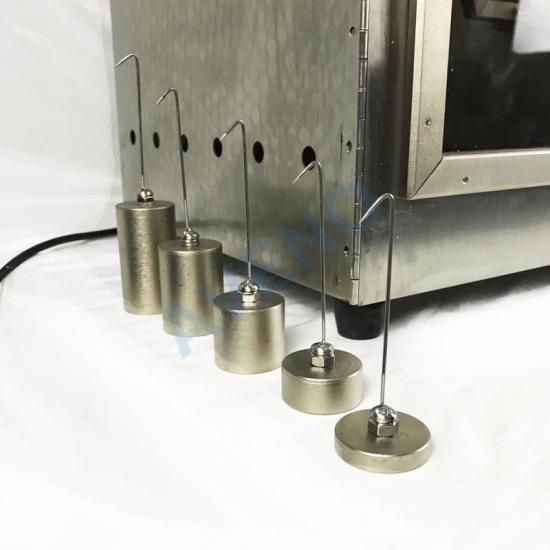

Weights |
5pcs |
|
|
Air supply device |
1pc |
|
|
Power line |
1pc |
Related products

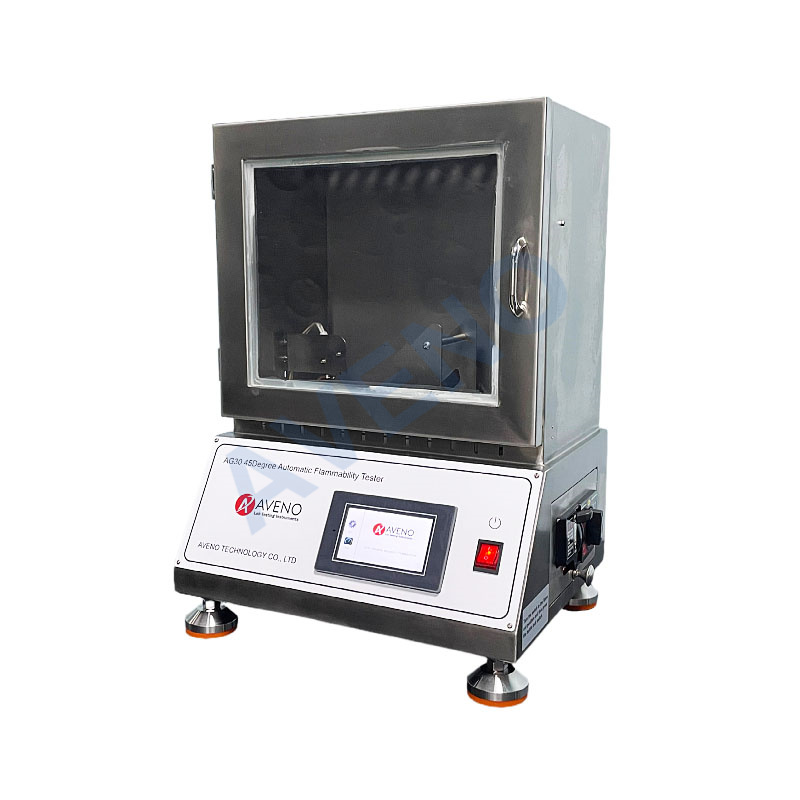

AG30 45Degree Automatic Flammability Tester AG65 Vertical Flammability Tester AG31 Vertical Combustibility Tester
