Vertical Flammability Tester is suitable for testing the flammability of all kinds of textile materials.
model :
AG65Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

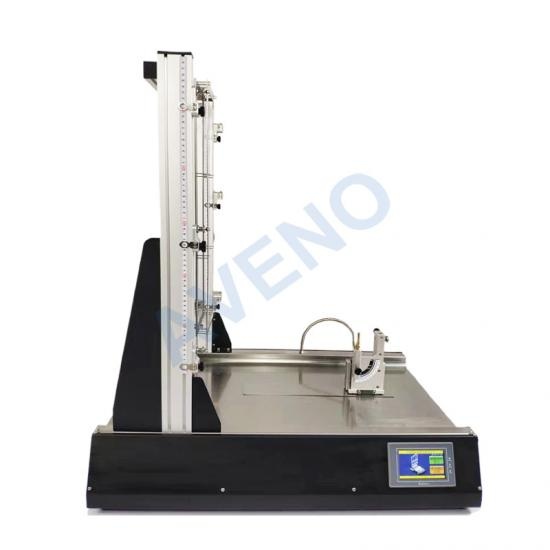

BS 5438, BS EN 532, 533, BS EN 1103, BS EN ISO 6940, 15025, EN ISO 6941, EN71, ISO 10047, DIN 53438, GB/T 5455, GB/T 5456, 8745, GB/T 8746AG65-Vertical Flammability Tester
Application Of Vertical Flammability Tester
Vertical Flammability Tester is suitable for testing the flammability of all kinds of textile materials.
1. Determination of vertical flame spread performance of textiles with one or more components of clothing, curtain curtains and large tents, including awnings and door cover.
2. Determination of combustion time of textile fabrics with fluff on the surface.
3. Testing of vertical ignitability of various single or multi-layer fabrics.
Test Principle Of Vertical Flammability Tester
The finished sample or material sample is installed on the corresponding fixture of the instrument, and the required flame combustion sample is used to record the relevant data (such as combustion time, combustion rate) to evaluate its combustion performance.
Standards Of Vertical Flammability Tester
BS 5438, BS EN 532, 533, BS EN 1103, BS EN ISO 6940, 15025, EN ISO 6941, EN71, ISO 10047, DIN 53438, GB/T 5455, GB/T 5456, 8745, GB/T 8746
Key Specification Of Vertical Flammability Tester
|
Model |
AG65 Vertical Flammability Tester |
|
Control model |
Touch screen control |
|
Ignition time setting range |
0~99.99s |
|
Combustion timing range |
0~999.9s |
|
Nozzle angle |
Angle to horizontal line 0 °/ 30 °/ 90 ° adjustable |
|
Test flame height |
20mm/40mm |
|
U-shaped fixture inner frame |
80mmx600mm |
|
U-shaped fixture marking line |
adjustable |
|
Burning gases |
Butane gas |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
80x55x66cm |
|
Weight |
45Kg |
Accessories Of Vertical Flammability Tester
|
Standard Accessories |
Griper |
1 set |
|
Gas supply device |
1 set |
|
|
Flame ruler |
1 pc |
|
|
Cotton thread |
1 roll |
|
|
Power line |
1 pc |
Related products

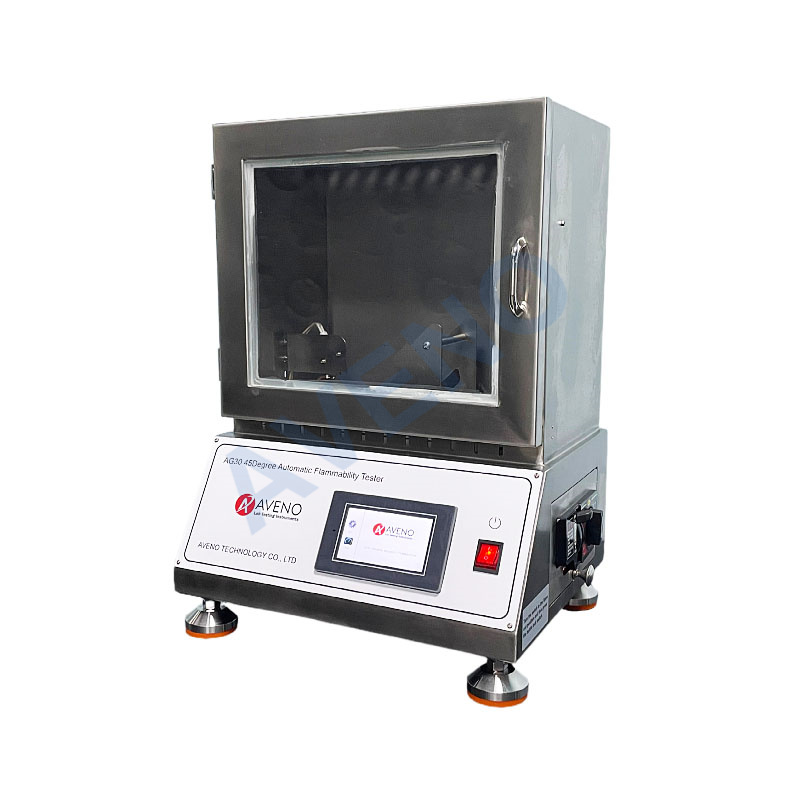

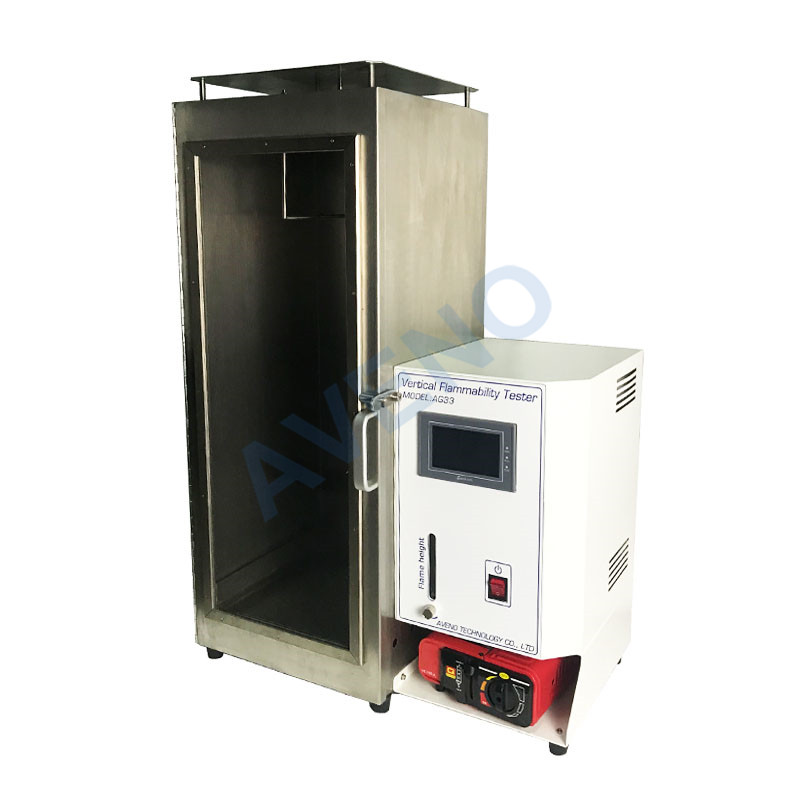

AG30 45Degree Automatic Flammability Tester AG33Vertical Flammability Tester
