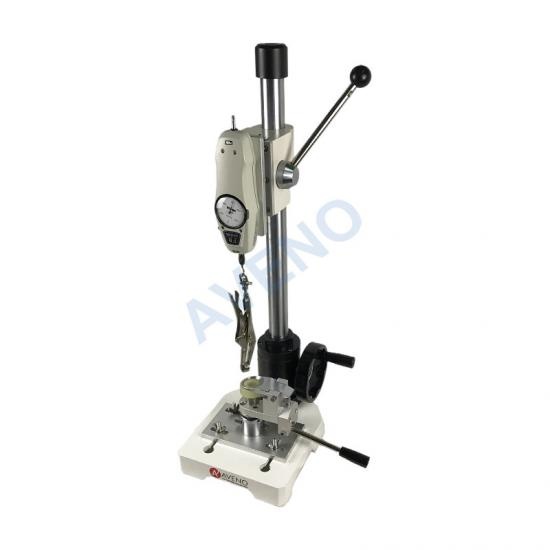

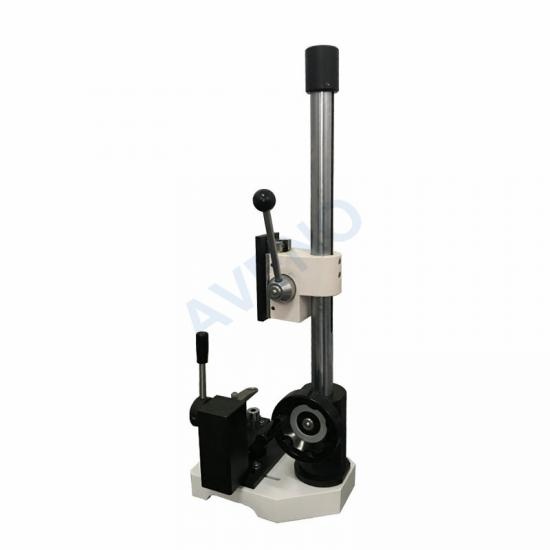

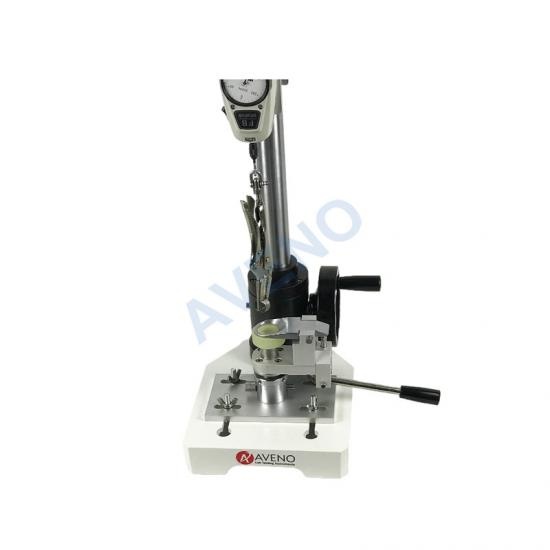

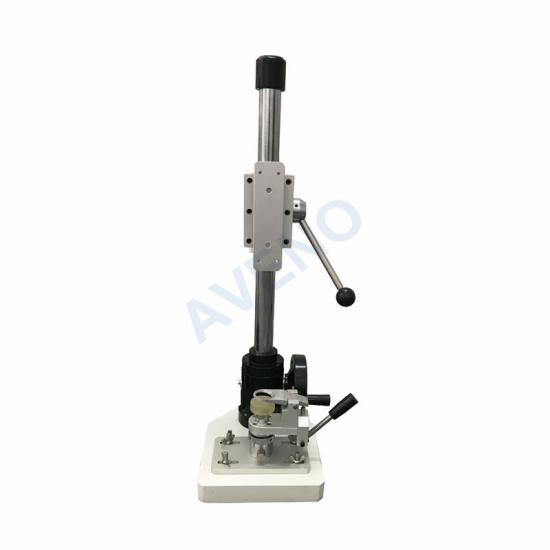

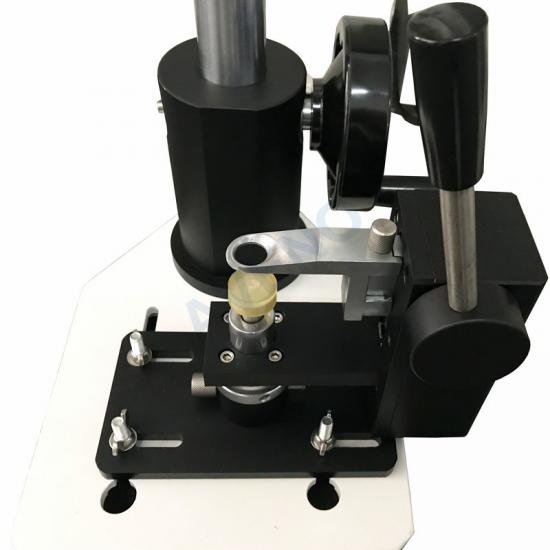

Snap Button Pull Tester used to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys.
model :
AG03Brand:
AVENOorigin:
ChinaLead Time：
3days (in stock)port:
Xiamen portPayment:
T/T, L/Ccertificate:
CE, ISO9001, ISO17025standard:
ASTM PS79-96, ASTM F963, D4846, EN 71-1, 16 CFR 1500.51-53, M&S P115A.AG03- Snap Button Pull Tester
Application of Snap Button Pull Tester
Snap Button Pull Tester used to measurement of the uniform force applied to the snap attachment shall be recorded by means of a force-measuring device, to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys, also as a Push Pull Tester applies for compression and tensile testing of small samples(special attachments are available).
Standards of Snap Button Pull Tester
ASTM PS79-96, ASTM F963, D4846, EN 71-1, 16 CFR 1500.51-53, M&S P115A.
Key Specification of Snap Button Pull Tester
|
Stroke |
400mm |
|
Capacity |
500N |
|
Dimensions |
310x 280 x 810 mm |
|
Weight |
40kg |

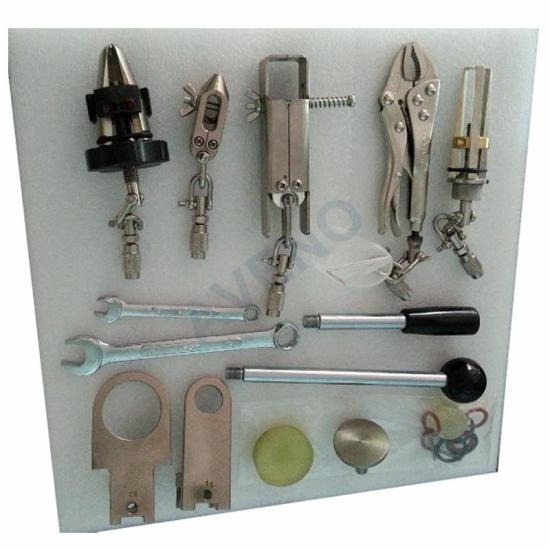

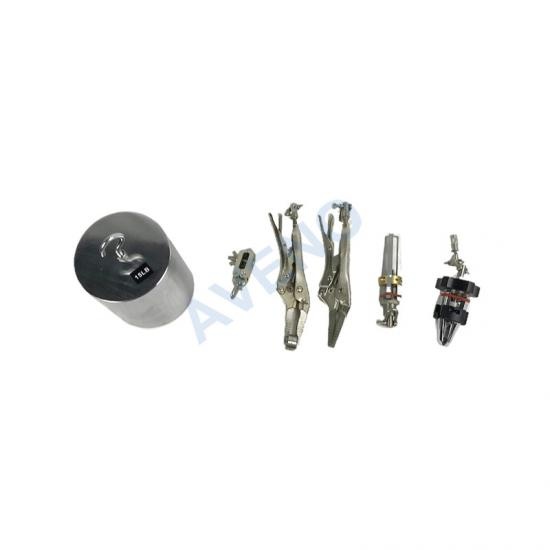

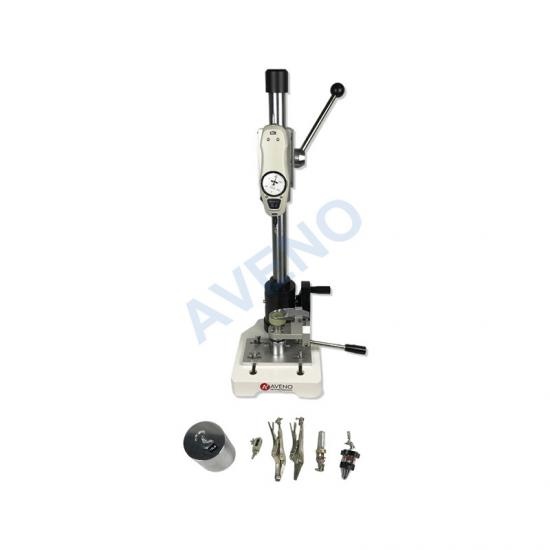

Accessories of Snap Button Pull Tester
|
Standard Accessories |

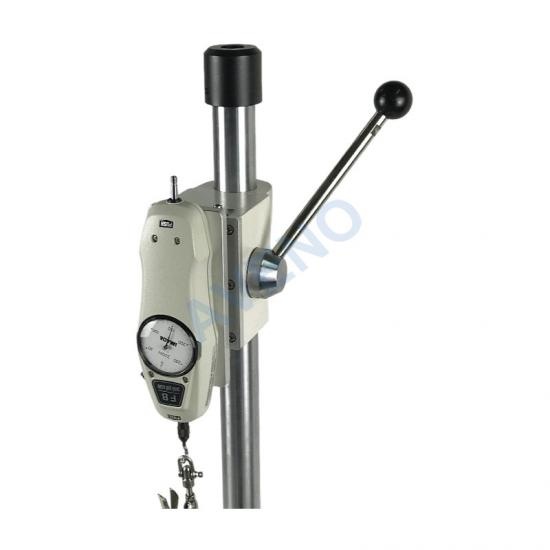

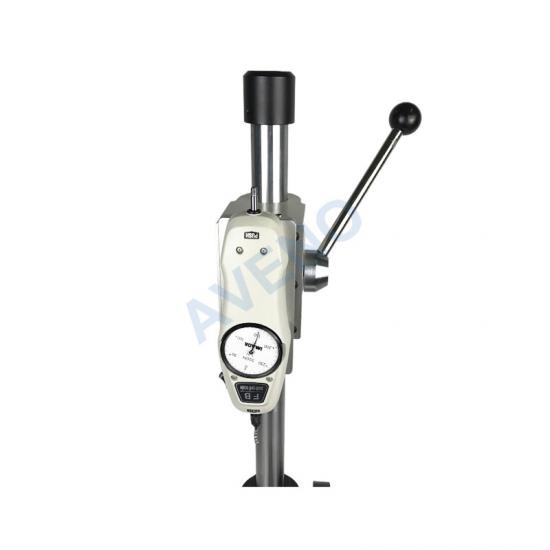

IMADA Force Gauge FB-30K (300N, Resolution 2N, Accuracy +/-1%FS) |
1 pc |
|
Universal upper grip |
1 pc |
|
|
Upper Stud Clamp |
1 pc |
|
|

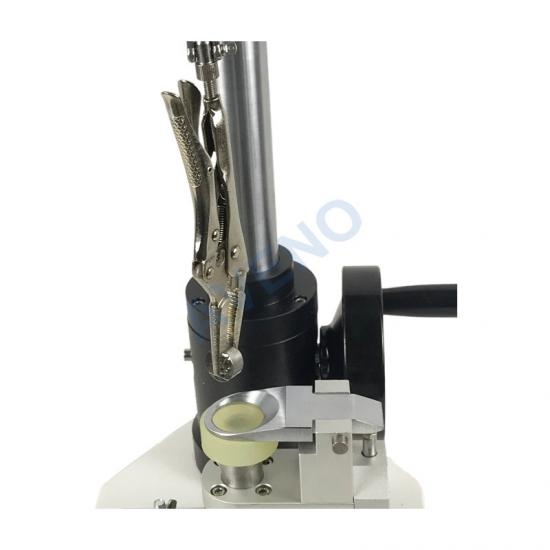

Long Nose Vise Grip |
1 pc |
|
|
Upper Button Clamp |
1 pc |
|
|

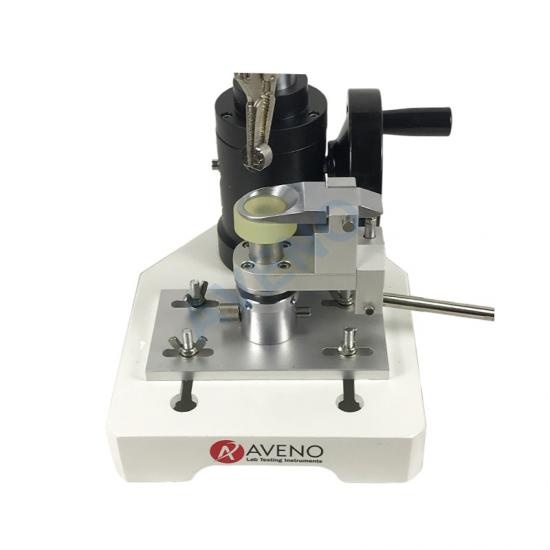

Lowe Grasp Button Accessory Kit |
1 pc |
|
|

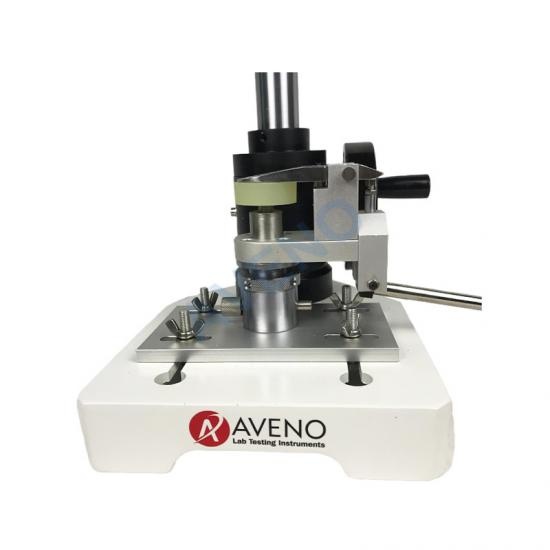

Lowe Fabric Clamp & Level Arm Locking |
1 pc |
|
|
Standard Accessories |
Calibration Weight 15LB |
1 pc |
|
Spanner #8 and #14 |
1 set |
|
|
Rubber band (Universal upper grip vulnerable parts) |
10pc |
Related products

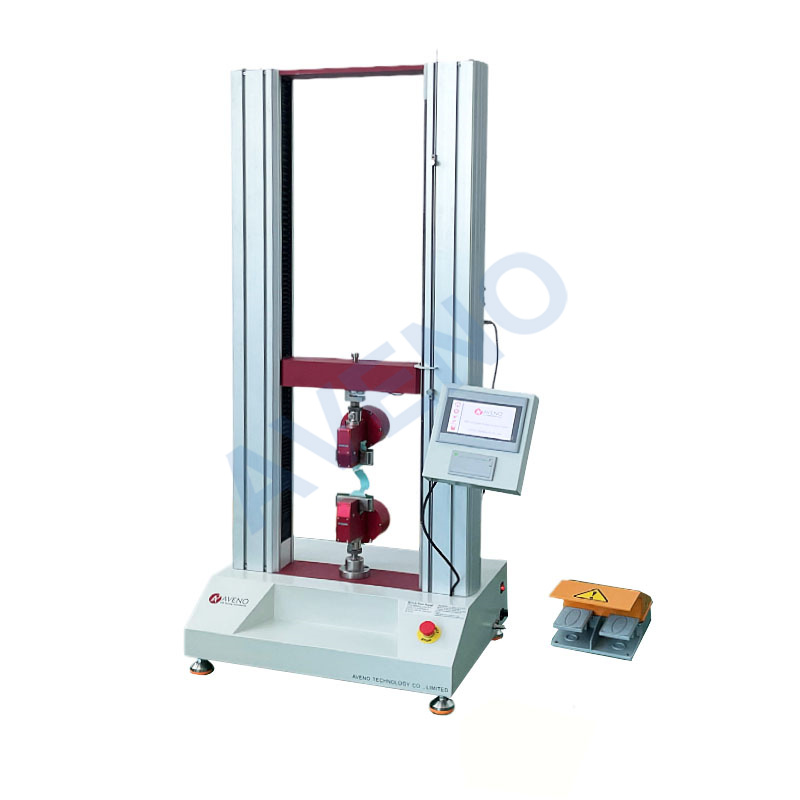

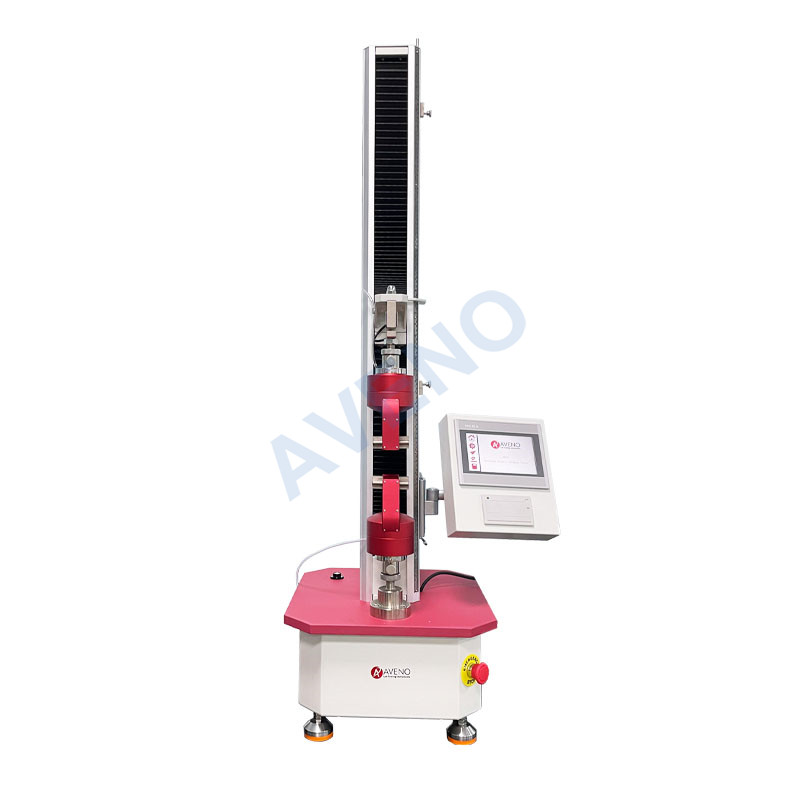

Universal Tensile Strength Tester Button Impact Resistance Tester Universal Tensile Strength
(Single Column) Tester (Double Column)
1. https://www.avenotester.com/universal-tensile-strength-tester-single-column-ag02_p11.html
2. https://www.avenotester.com/button-impact-resistance-tester-ag12_p22.html
3. https://www.avenotester.com/Universal-Tensile-Strength-Tester-Double-Column-AG01_p12.html
Bursting Strength Tester is used to determine the expansion force and divergence rate of fabric, woven, knitted fabrics, non-woven, paper and board.
Elmendorf Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
Digital Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.

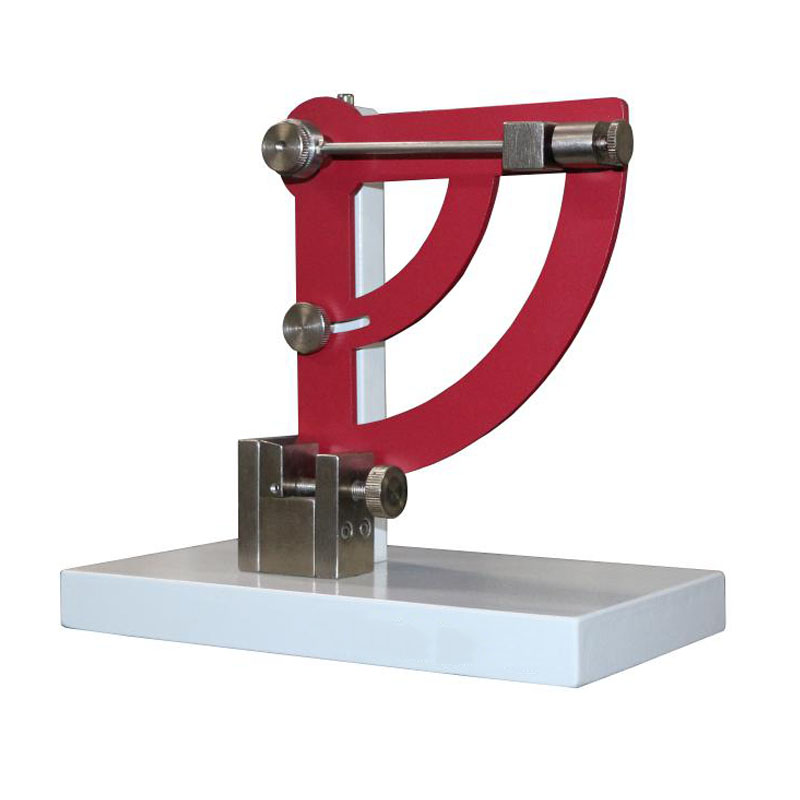

Button Impact Resistance Tester is used to determine the impact resistance of plastic sew-through flange buttons.
