Automatic Fabric Drape Tester is used to test the dynamic and static drape performance (drape coefficient, activity rate, surface ripple and aesthetic sensation coefficient) of various fabrics.
model :
AG49Brand:
AVENOorigin:
ChinaLead Time：
10-20daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:

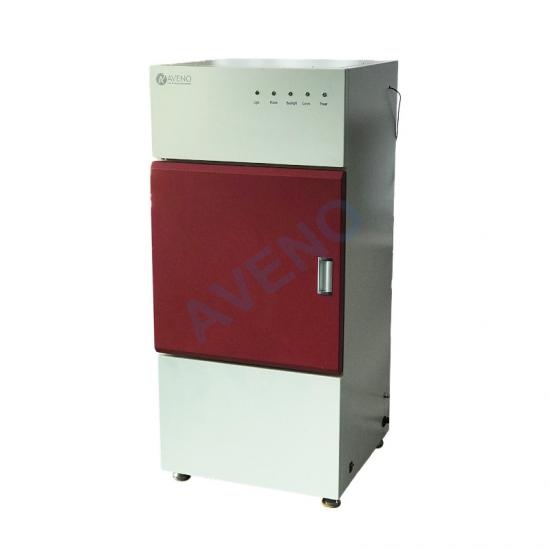

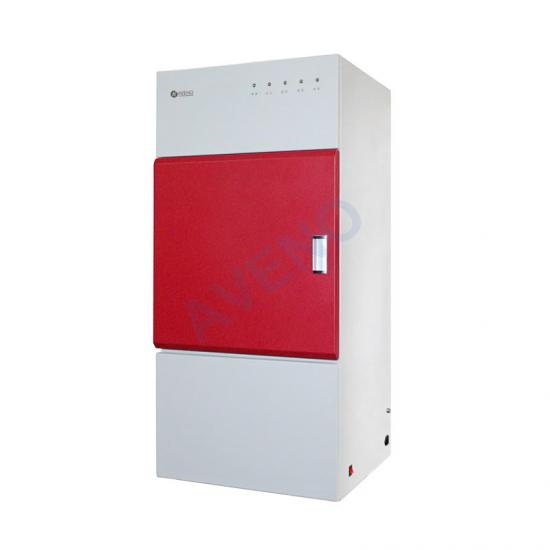

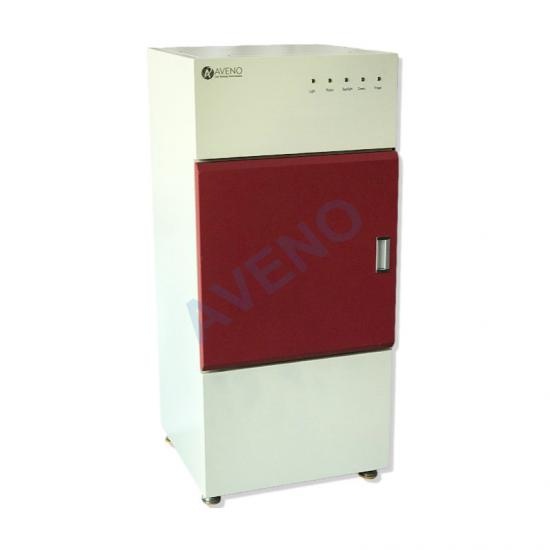

BS EN 9073, ERT 90-1,AFNOR G07-109, UNI 8279,FZ/T 01045, BS 5058AG49-Automatic Fabric Drape Tester
Application Of Automatic Fabric Drape Tester
Automatic Fabric Drape Tester is used to test the dynamic and static drape performance (drape coefficient, activity rate, surface ripple and aesthetic sensation coefficient) of various fabrics.
Feature Of Automatic Fabric Drape Tester
Standards Of Automatic Fabric Drape Tester
BS EN 9073, ERT 90-1,AFNOR G07-109, UNI 8279,FZ/T 01045, BS 5058, FZ/T 01045
Key Specification Of Automatic Fabric Drape Tester
|
Model |
AG49 Automatic Fabric Drape Tester |
|
Work mode |
Microcomputer control, CCD imaging, computer automatic processing of images and data. |
|
Imaging sensor |
CCD |
|
Drape coefficient rage |
0～100% ± 2% |
|
Rotation speed |
3～80±1r/min |
|
Power supply |
AC220V, 50/60HZ |
|
Dimension |
60*57*107cm |
|
Weight |
50kg |
Accessories Of Automatic Fabric Drape Tester
|
Standard Accessories |
Sample cutting plate |
1set (Ф240mm, Ф300mm, Ф360mm) |
|
Sample cover |
1pc |
|
|

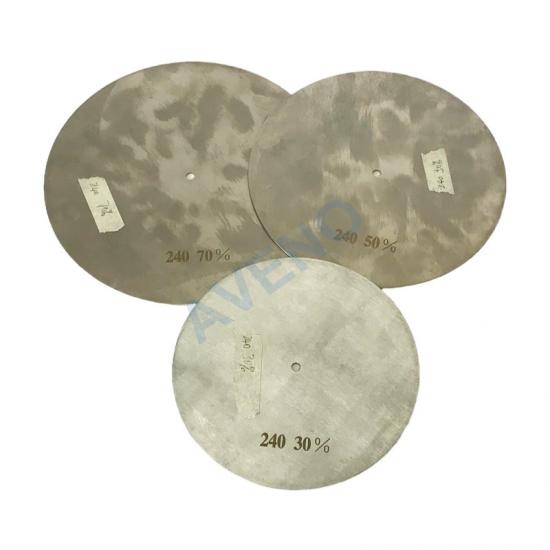

Calibration plate |
3pc (30%, 50%, 70%) |
|
|
Computer |
1set |
|
|
Printer |
1set |
|
|
Operate software |
1set |
|
|
Serial connector |
1pc |
|
|
Power line |
1pc |
