Impact Penetration Tester is suitable for testing fabric resistance to water seepage under low impact conditions.
model :
AG69Brand:
AVENOorigin:
ChinaLead Time：
3-7daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
AATCC42, ISO18695, GB/T33732

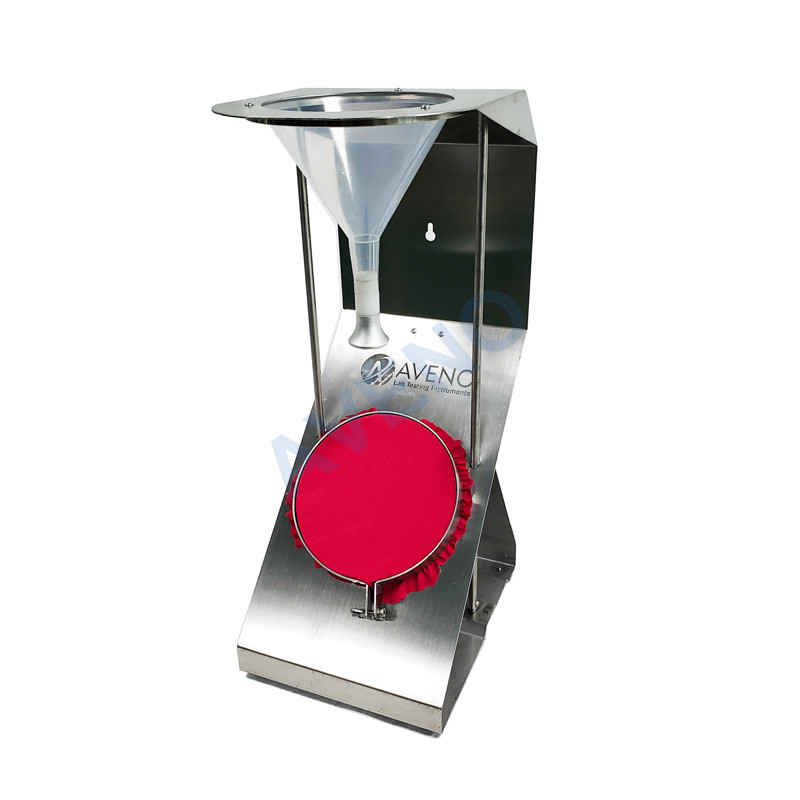

AG69- Impact Penetration Tester
Application Of Impact Penetration Tester
Impact Penetration Tester is suitable for testing fabric resistance to water seepage under low impact conditions.
Test Principle Of Impact Penetration Tester
A volume of water is allowed to spray against a taut surface of a test specimen backed by a weighed blotter is then reweighted to determine water penetration and the specimen is classified accordingly.
Standards Of Impact Penetration Tester
AATCC42, ISO18695, GB/T33732
Key Specification Of Impact Penetration Tester
|
Model |
AG69 Impact Penetration Tester |
|
Impact height |
(610±10) mm |
|
Funnel diameter |
152mm |
|
Nozzle hole |
25pcs |
|
Nozzle hole diameter |
0.99mm |
|
Sample dimension |
(178±10) mm × (330±10) mm |
|
Tension spring clip |
(0.45±0.05) kg |
|
Dimension |
50×60×85cm |
|
Weight |
10kg |
Accessories Of Impact Penetration Tester
|
Standard Accessories |
450g load weight |
1pc |
|
500ml counting cup |
1pc |
|
|
Clamper |
1pc |
|
|
Water tray |
1pc |
