Light Fastness Tester (water-cool), is used for testing experiments on simulated Light Color fastness, Photo-sweat Composite Colour fastness and Light Aging by Solar radiation of rubber, plastics, paints, paints, petrochemical, automotive, textile and other industries.
model :
AC02Brand:
AVENOorigin:
ChinaLead Time：
3-10daysport:
Xiamen portPayment:
T/T, L/Ccertificate:
CE ISO9001 ISO17025standard:
ISO, EN, ASTM, AATCC, M&S, JIS, and etc.

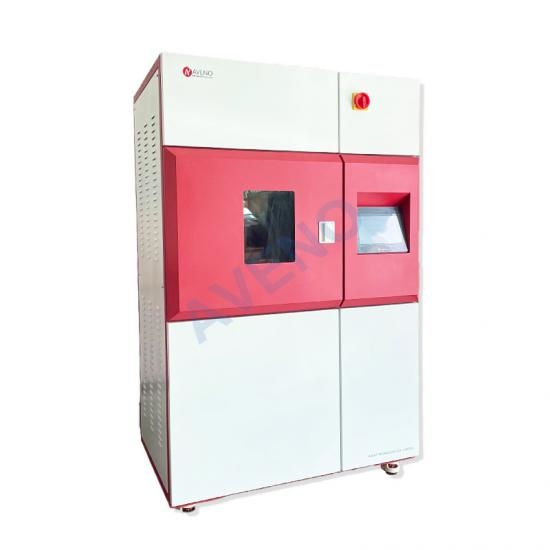

AC02- Light Fastness Tester (water-cool)
Application Of Light Fastness Tester (water-cool)
Light Fastness Tester (water-cool), is used for testing experiments on simulated Light Color fastness, Photo-sweat Composite Colour fastness and Light Aging by Solar radiation of rubber, plastics, paints, paints, petrochemical, automotive, textile and other industries.
By simulating the climatic conditions such as light, rain, spray, alternating light and dark, temperature and humidity, etc., to determine the fading, aging, fading, transmissivity, peeling, hardness and softening of material products.
Features Of Light Fastness Tester (water-cool)

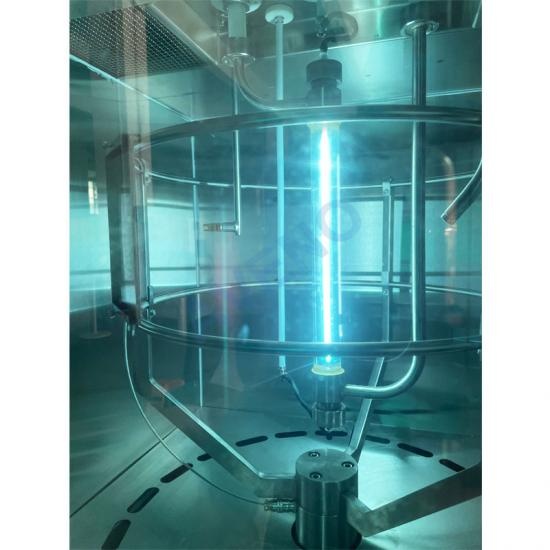

1. Using 6000W water cooled long arc xenon lamp, point light source with high efficiency electric energy and light conversion technology. Matching with high transmittance filtering system, Irradiation energy xenon lamp power is lower, energy saving and environmental protection are being realized.
2. Irradiance digital setting, real-time monitoring, automatic adjustment, in order to meet the different requirements of the standard for testing optical stability.
3. Irradiancy using optical fiber technology to guide light, 16 bit sampling ad, 32 bit CPU processing, digital setting, AC variable-frequency stepless regulation of xenon lamp, complete realization of Closed-loop Stability automatic compensation.
4. Using standard lamp to correct patent technology, can completely eliminate the attenuation of aging of irradiance acquisition system due to long term test.
5. BPT and BST same station ( equidistant ) detection test with the sample, truly reflect the test state of the sample.
6. Intelligent cycle regulating system, ultrasonic and ptc humidification, circulation wind speed servo motor control, so that the temperature , humidity and blackboard temperature in test chamber can close-cycle control, ensure long - term stable output of test parameters.
7. Cooling water use mixing of internal circulation and high energy efficient heat exchange system, saving water to reduce operating costs.
8. 10.4 inch touch screen display control, Chinese and English operation interface, multiple test monitoring modes (animation, numbers, charts), multistage running mode programming, support online programming without downtime, easy to be operated and controlled.
9. All sample clips achieve separate timing, can test samples of different time in the same machine.
Standards Of Light Fastness Tester (water-cool)
|
Textile |
AATCC 169, GB/T 8430, GB/T 14576, GB/T 8427, ISO 105-B02/B04/B06, M&S C09 / C09A, JIS L0843 |
|
Rubber & Plastics |
GB/T 16422.1, GB/T 12831, GB/T9344, ASTM D2565, ISO 4892 |
|
Paint coating |
GB/T1865, ASTM D6695, ISO 11341, NES M0135 |
|
Non-metallic Material |
AATCC TM16, ASTM G26, ASTM D4459, ASTM G155, GB/T 2423.24, GB/T 15102, GB/T 15104 Car: SAE J2527, SAE J1885, SAE J2212, SAE J1960, SAE J2412, ISO3917, PV 1303, PV 3929, PV 3930, DVM 0067- MA HES D6601, TSL 0601G, GMW3414, EDS-T-7415, D47 1431 |
Key Specification Of Light Fastness Tester (water-cool)
|
Model |
AC02 Light Fastness Tester (water-cool) |
|
Chamber temperature range |
30～90℃, ±0.1℃ |
|
Chamber humidity range |
Light cycle: 20～70RH%, ±0.1RH% Dark cycle: 30～95RH%, ±0.1RH% |
|
Test time range |
≤10000h |
|
Irradiance control range |
0.6～3.08W/m²@420nm, Option: 340nm, 300-400nm or 280-800nm Digital setting, automatic compensation |
|
Standard blackboard thermometer |
35～120℃, ±0.1℃ |
|
Xenon arc lamp rated power |
6kW |
|
Rotation speed of the sample frame |
3-7rpm, can be set |
|
Distribution diameter of sample clamp |
Φ550mm |
|
Sample holder |
AC02-1: ISO: 145×45mm 33pcs AATCC: 145×70mm 21pcs, option AC02-2: ISO: 145×45mm 48pcs AATCC: 145×70mm 36pcs, option |
|
Dimension |
120×90×180cm |
|
Weight |
350kg |
Accessories Of Light Fastness Tester (water-cool)
|
Standard Accessories |
145*45mm sample holder for ISO and GB standard (AC02-1: 30pcs, AC02-2: 48pcs) |
1set |
|
45mm Cover plate (AC02-1: 1/2, 1/3, 2/3, each size30pcs) (AC02-2: 1/2, 1/3, 2/3, each size48pcs) |
1sets |
|
|
145*70mm sample holder for AATCC standard (AC02-1: 21pcs, AC02-2: 36pcs) |
1set |
|
|
70mm Cover plate (AC02-1: 1/2, 1/3, each size21pcs) (AC02-2: 1/2, 1/3, each size36pcs) |
1set |
|
|
Sample board (AC02-1: ISO/GB 60pcs, AATCC 50pcs) (AC02-2: ISO/GB 100pcs, AATCC 80pcs) |
1set |
|
|
Oscillator for humidifier |
2pcs |
|
|
Xenon lamp water-cooled lamp holder (installed in main machine) |
1set |
|
|
Xenon arc lamp (1pc in main machine, 1pc spare) |
2pcs |
|
|
Standard blackboard thermometer |
1pc |
|
|
PP cotton (1pc in main machine, 1pc spare) |
2pcs |
|
|
Blue wool standard sample |
1set |
|
|
Grey scale |
1set |
|
|
Inner hexagon spanner |
1pc |
|
|
Fuse (5A) |
2pcs |
|
|
Drainage intake pipe |
1set |
